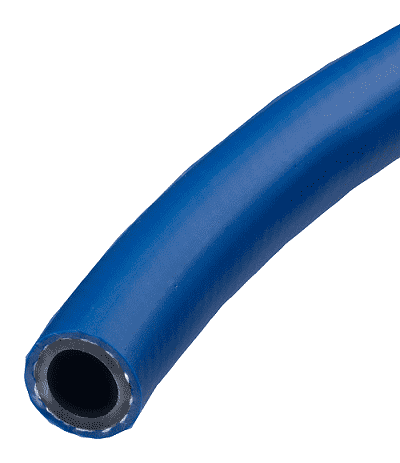

K1176-04X500 Kuri-Tec by Kuriyama | K1176 Series | General Service Air & Water Hose | Blue | 1/4" ID | .475" OD | PVC | 500ft Length

K1176-04X500 Kuri-Tec by Kuriyama | K1176 Series | General Service Air & Water Hose | Blue | 1/4" ID | .475" OD | PVC | 500ft Length

Save $18.41 Save $18.41
$207.41
$207.41 - $207.41
$207.41
$189.00
$189.00 - $189.00
$189.00

Kuriyama Kuri Tec® Series K1176 General Purpose PVC Air & Water Hose - Blue A general service PVC air and water hose for indoor or outdoor applications requiring a lightweight hose that can operate at lower temperatures.

Package Quantity: 500 FT

Specifications for Variant SKU: K1176-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K1176 Series
Hose Color(s): Blue
Internal Diameter: 0.25in
Outer Diameter: 0.475in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Transfer of air, water and mild water soluble chemicals, Ideal for in-plant and outdoor applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems. SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: High tensile strength yarn Cover: PVC compound
Temperature Range: -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical, lightweight, low temperature alternative to rubber hose.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • 300 PSI working pressure on all sizes.
  • Non-marking pin-pricked cover
  • Complies with RMA's Class B designation for medium/high oil resistance.
  • One-piece lengths.
  • Formulated for low temperature flexibility.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K1176-04X500 1/4" 6.5mm .475" 12.1mm 300 PSI 150 PSI 500 ft. 36 lbs.
K1176-06X500 3/8" 9.5mm .600" 15.2mm 300 PSI 150 PSI 500 ft. 48 lbs.
K1176-08X300 1/2" 12.7 mm .750" 19.1mm 300 PSI 150 PSI 300 ft. 42 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
