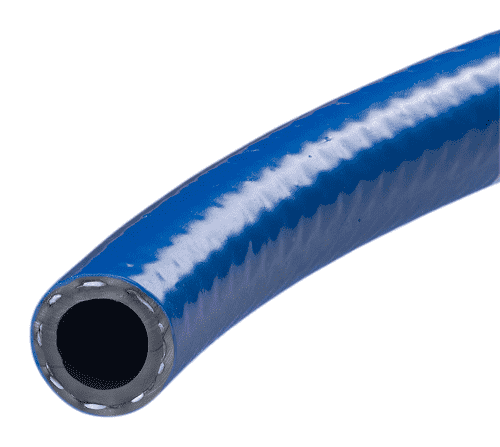

K1186-04X500 Kuri-Tec by Kuriyama | K1186 Series | Utility Grade Air Hose | Blue | 1/4" ID | .475" OD | PVC | 500ft Length

Save $54.00

$189.00

$189.00 - $189.00

$189.00

$135.00

$135.00 - $135.00

$135.00

Kuriyama Kuri Tec® Series K1186 Utility Grade PVC Air Hose - Blue A lightweight utility air and water hose economically designed for indoor and outdoor applications operating in temperate climate conditions.

Package Quantity: 500 FT

Specifications for Variant SKU: K1186-04X500 Kuriyama \| 500 \|
Brand:	Kuri Tec
Series:	K1186 Series
Hose Color(s):	Blue
Internal Diameter:	0.25in
Outer Diameter:	0.475in
Tubing Construction:	PVC
Cover Construction:	PVC

SPECIFICATIONS

Other Features:
Application:	Transfer of air, water and mild water soluble chemicals, Indoor/outdoor air tool service.	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black PVC compound
Reinforcement:	High tensile strength yarn	Cover:	PVC compound
Temperature Range:	+14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Economical, lightweight construction. One-piece coils. U. V. and weather resistant.

Part Number	Nominal ID		Nominal OD		Working Pressure	Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	Coils
K1186-04X500	1/4"	6.5mm	.475"	12.1mm	300 PSI	500 ft.	35 lbs.
K1186-06X500	3/8"	9.5mm	.600"	15.2mm	300 PSI	500 ft.	47.5 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
