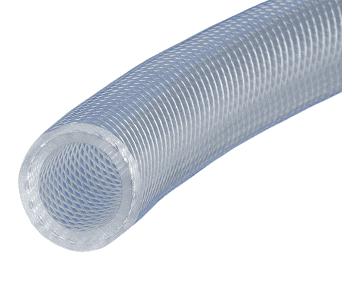

K3280-08X500 Kuri-Tec by Kuriyama | K3280 Series | NSF-61 Certified Reinforced Flexible Clear Connection Hose | .505" ID | .740" OD | PVC | 500ft Length

K3280-08X500 Kuri-Tec by Kuriyama | K3280 Series | NSF-61 Certified Reinforced Flexible Clear Connection Hose | .505" ID | .740" OD | PVC | 500ft Length

Save $48.92 Save $48.92
$525.92
$525.92 - $525.92
$525.92
$477.00
$477.00 - $477.00
$477.00

Kuriyama Kuri Tec® Series K3280 NSF-61 Certified Reinforced PVC Flexible Connection Hose A flexible, non-contaminating NSF-61 certified hose that is ideal for use in drinking water applications.

Package Quantity: 500 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: K3280-08X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K3280 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.505in
Outer Diameter: 0.74in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 61, RoHS Compliant

SPECIFICATIONS

Application: Flexible water connectors, Transfer of potable water, Transfer of deionized water, Water transfer lines for semiconductor manufacturing, where applicable. SAE Rating: N/A
Other Ratings: N/A Tube: Clear K3280 or white K3285 tube compound is formulated in compliance with applicable FDA(03) regulations, certified under NSF(10) and RoHS(15) criteria.
Reinforcement: High tensile strength multifilament polyester yarn. Cover: Clear PVC compound formulated in compliance with applicable FDA(03) regulations, certified under NSF(11) criteria.
Temperature Range: +14 deg. F (-10 deg. C) to +140 deg. F (+60 deg. C) Domestic Hot and Cold Water Crimp Fittings: N/A
Reusable Fittings: N/A Specifications ASME(02), FDA(03), NSF(10), RoHS(15)
Other Features:
  • Made with PVC compounds certified under NSF-61.
  • When coupled properly, hose will pass high temperature extreme test requirement of ASME(02) criteria.
  • Closely-packed white polyester yarn design ensures minimal expansion of the hose while in service.
  • Silicone-free.
  • One-piece lengths.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3280-04X500 .260" 6.6mm .440" 11.1mm 180 PSI 125 PSI 500 ft. 28 lbs.
K3280-06X500 .380" 9.7mm .595" 15.1mm 180 PSI 125 PSI 500 ft. 46 lbs.
K3280-08X500 .505" 12.8mm .740" 18.8mm 180 PSI 125 PSI 500 ft. 64 lbs.

Note: Working Pressure decreases as temperature increases. The pressure ratings of hose assemblies can be affected by the type of fitting used and the coupling procedure. We cannot be responsible for the suitability of the user's fittings or the coupling method used. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
