K3285-05X500 Kuri-Tec by Kuriyama | K3285 Series | NSF-61 Certified Reinforced Flexible White Tube Connection Hose | .320" ID | .485" OD | PVC | 500ft Length

K3285-05X500 Kuri-Tec by Kuriyama | K3285 Series | NSF-61 Certified Reinforced Flexible White Tube Connection Hose | .320" ID | .485" OD | PVC | 500ft Length

Save $34.81 Save $34.81
$348.14
$348.14 - $348.14
$348.14
$313.33
$313.33 - $313.33
$313.33

""

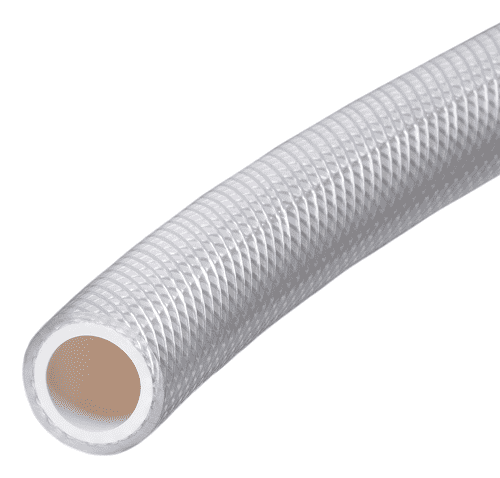

Kuriyama Kuri Tec® Series K3285 NSF-61 Certified Reinforced PVC Flexible Connection Hose - White Tube A flexible, non-contaminating NSF-61 certified hose that is ideal for use in drinking water applications.

Package Quantity: 500 FT

Specifications for Variant SKU: K3285-05X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: K3285 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.32in
Outer Diameter: 0.485in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 61, RoHS Compliant

SPECIFICATIONS

Application: Flexible water connectors, Transfer of potable water, Transfer of deionized water, Water transfer lines for semiconductor manufacturing, where applicable. SAE Rating: N/A
Other Ratings: N/A Tube: Clear K3285 or white K3285 tube compound is formulated in compliance with applicable FDA(03) regulations, certified under NSF(10) and RoHS(15) criteria.
Reinforcement: High tensile strength multifilament polyester yarn. Cover: Clear PVC compound formulated in compliance with applicable FDA(03) regulations, certified under NSF(11) criteria.
Temperature Range: 14 deg. F (-10 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications ASME(02), FDA(03), NSF(10), RoHS(15)
Other Features:
  • Made with PVC compounds certified under NSF-61.
  • When coupled properly, hose will pass high temperature extreme test requirement of ASME(02) criteria.
  • Closely-packed white polyester yarn design ensures minimal expansion of the hose while in service.
  • Silicone-free.
  • One-piece lengths.

Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3285-05X500 .320" 8.1mm .485" 12.3mm 180 PSI 125 PSI 500 ft. 29 lbs.
K3285-06X500 .380" 9.7mm .595" 15.1mm 180 PSI 125 PSI 500 ft. 46 lbs.
K3285-08X500 .505" 12.8mm .740" 18.8mm 180 PSI 125 PSI 500 ft. 64 lbs.

Note: Working Pressure decreases as temperature increases. The pressure ratings of hose assemblies can be affected by the type of fitting used and the coupling procedure. We cannot be responsible for the suitability of the user's fittings or the coupling method used. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
