K5096-06X500 Kuri-Tec by Kuriyama | PNEU-THANE K5096 Series | Lightweight Reinforced Pneumatic Air Tool Hose | Blue | 3/8" ID | .560" OD | Polyurethane | 500ft Length

K5096-06X500 Kuri-Tec by Kuriyama | PNEU-THANE K5096 Series | Lightweight Reinforced Pneumatic Air Tool Hose | Blue | 3/8" ID | .560" OD | Polyurethane | 500ft Length

Save $350.40 Save $350.40
$1,226.40
$1,226.40 - $1,226.40
$1,226.40
$876.00
$876.00 - $876.00
$876.00

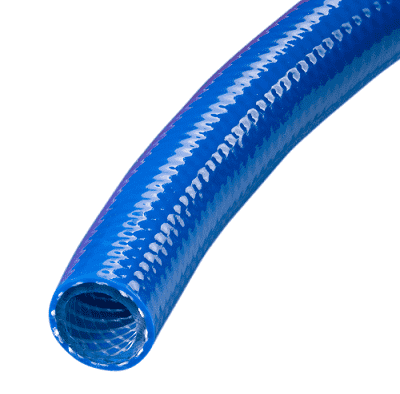

Kuriyama Kuri Tec® PNEU-THANE™ Series K5096 Lightweight Reinforced Polyurethane Pneumatic Air Tool Hose - Blue An extremely lightweight, tough, flexible pneumatic air tool hose that is suitable for a wide range of industrial and construction applications.

Package Quantity: 500 FT

Specifications for Variant SKU: K5096-06X500 Kuriyama | 500 |
Brand: Kuri Tec, PNEU-THANE
Series: K5096 Series
Hose Color(s): Blue
Internal Diameter: 0.375in
Outer Diameter: 0.56in
Tubing Construction: Polyurethane
Cover Construction: Polyurethane
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers. In-plant assembly line air service, Construction sites, Automotive repair and body shops, Marine applications, Air service for spray painting equipment SAE Rating: N/A
Other Ratings: N/A Tube: Clear ether-based polyurethane.
Reinforcement: High tensile strength yarn. Cover: Ether-based polyurethane
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Very lightweight and flexible - helps to cut down on work-related injuries.
  • Good flex fatigue and resilience characteristics.
  • Excellent resistance to oils and solvents.
  • High oil resistance, complies with RMA's Class A Designation.
  • Superior cut-resistance.
  • High abrasion-resistance - provides extra long life compared with conventional PVC or rubber air hoses.
  • Good resistance to hydrolysis and algae in warm water applications.
  • Silicone-free core and cover
  • Non-conductive compounds.
  • Non-marking cover.
  • One-piece lengths.
  • RoHS(15) compliant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K5096-04X100 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 100 ft. Coil 4 lbs.
K5096-04X500 1/4" 6.5mm .395" 10.0mm 250 PSI 200 PSI 500 ft. Reel 27 lbs.
K5096-05X100 5/16" 8.0mm .472" 12.0mm 250 PSI 200 PSI 100 ft. Coil 5 lbs.
K5096-05X500 5/16" 8.0mm .472" 12.0mm 250 PSI 200 PSI 500 ft. Reel 32 lbs.
K5096-06X100 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 100 ft. Coil 8 lbs.
K5096-06X500 3/8" 9.5mm .560" 14.2mm 250 PSI 200 PSI 500 ft. Reel 47 lbs.
K5096-08X100 1/2" 12.5mm .688" 17.5mm 250 PSI 200 PSI 100 ft. Coil 10 lbs.
K5096-08X500 1/2" 12.5mm .688" 17.5mm 250 PSI 200 PSI 500 ft. Reel 57 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
