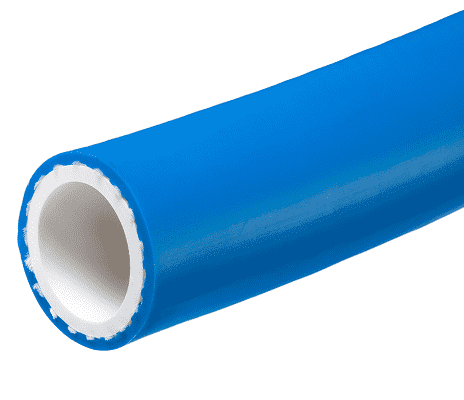

K6136-KA32X100 Kuri-Tec by Kuriyama | K6136 Series | High Purity Street to Home Potable Water Hose | 2" ID | 2.48" OD | 100ft Length

K6136-KA32X100 Kuri-Tec by Kuriyama | K6136 Series | High Purity Street to Home Potable Water Hose | 2" ID | 2.48" OD | 100ft Length

Save $112.15 Save $112.15
$1,121.48
$1,121.48 - $1,121.48
$1,121.48
$1,009.33
$1,009.33 - $1,009.33
$1,009.33

Kuriyama Kuri Tec® Series K6136 High Purity Street to Home Potable Water Hose A quality potable water hose specifically designed for temporary water supply and bypass applications.

Package Quantity: 100 FT

Specifications for Variant SKU: K6136-KA32X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: K6136 Series
Hose Color(s): Blue
Internal Diameter: 2in
Outer Diameter: 2.48in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, NSF 61, RoHS Compliant

SPECIFICATIONS

Application: Transfer of potable water, Water purification systems, Temporary surface bypass potable water lines for municipal construction sites, Water sampling. SAE Rating: N/A
Other Ratings: N/A Tube: Pure white PVC compound, formulated in compliance with applicable FDA(03) and RoHS(15) requirements. Meets NSF(11) criteria.
Reinforcement: High tensile strength yarn, with longitudinal yarns to prevent elongation under pressure. Cover: Blue high quality PVC compound, uniquely blended to provide excellent abrasion- and weatherresistance. Blue color signifies pure water line.
Temperature Range: -10 deg. F (-23 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA(03), NSF(11), RoHS(15)
Other Features:
  • KC046-W high purity NSF-61(11) certified tube material diminishes water quality concerns regarding surfaces which are contacted by potable water.
  • KC046-W inner tube is less porous than the tube in commonly-used conventional rubber hoses, and is easier to flush and keep clean.
  • Silicone-free.
  • White inner tube and Blue cover reduce tendency for algae growth in warm, sunny environments.
  • Extremely light weight - 22 to 25% lighter than conventional rubber hose, helps to reduce worker fatigue.
  • Hassle-free and easier to use, requires less installation time than rigid pipe.
  • Strong and durable, ideal for construction site environments.
  • Heavy duty construction limits kinking in the hot summer sun.
  • Good abrasion resistance.
  • Does not leave a bad taste or odor in the water, unlike conventional rubber hoses.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Reel
K6136-KA12X500 3/4" 19.1mm 1.125" 28.6mm 250 PSI 110 PSI 500 ft. 168 lbs.
K6136-KA32X100 2" 50.8mm 2.48" 63.0mm 110 PSI 45 PSI 100 ft. 96 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed.
