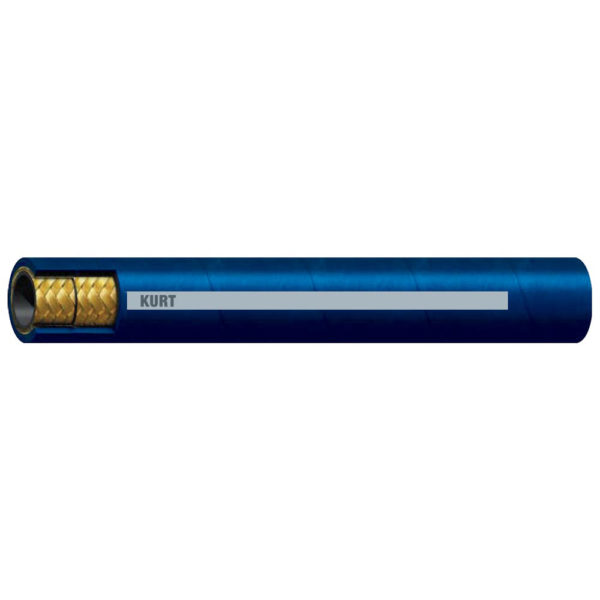

KHTR16S-12 by Kurt Hydraulics | KHTR16S Series | 0.75in ID x 1.09in ID | 3000 MAWP | 2-Wire Hydraulic Hose with Synthetic Rubber Tube and Synthetic Rubber Cover | USCG | Blue | 330ft Reel

KHTR16S-12 by Kurt Hydraulics | KHTR16S Series | 0.75in ID x 1.09in ID | 3000 MAWP | 2-Wire Hydraulic Hose with Synthetic Rubber Tube and Synthetic Rubber Cover | USCG | Blue | 330ft Reel

Save $448.80 Save $448.80
$4,039.20
$4,039.20 - $4,039.20
$4,039.20
$3,590.40
$3,590.40 - $3,590.40
$3,590.40

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 330 Feet

Specifications for Variant SKU: KHTR16S-12 Kurt | 330 |
Series: KHTR16S Series
Hose Color(s): Blue
Dash Size: -12
Internal Diameter: 0.75in
Outer Diameter: 1.09in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: USCG

Recommended for: High pressure, high temperature hydraulic oil lines. SAE J1942 U.S.C.G Accepted Hydraulic Only.

Tube: Black, high temperature and oil resistant, synthetic rubber.

Reinforcement: Two braids of high tensile steel wire.

Cover: Blue, oil and abrasion resistant synthetic rubber, MSHA approved.

Temperature Range: -10°F to +300°F

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
