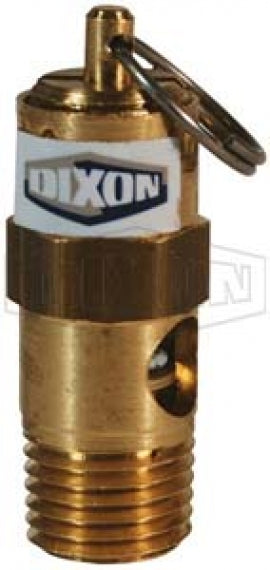

KSV10-175 by Dixon Valve | Safety Pop-Off Valve | Soft Seat | 1/4" Male NPT | 175 PSI Preset Pressure | 84 SCFM | Brass

Save $0.93

$8.38

$8.38 - $8.38

$8.38

$7.45

$7.45 - $7.45

$7.45

Dixon Valve & Coupling
Safety Pop-Off Valve | Soft Seat

For use on compressors and in compressed air service.

Designed to protect un-fired pressure vessels from over-pressure.

Quantity

Specifications for Variant SKU: KSV10-175 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Male NPT, Some Ends Match
Material(s):	Brass

Materials:
Constructed of precision machined brass bar stock with a silicone disc sealing on the brass.
Specifications:
Maximum temperature: 400°F (204°C)
Approvals:
ASME Code, National Board Certified CSA B51-03 certified

Part Number	Male NPT	Preset Pressure PSI	SCFM
KSV10-100	1/4"	100 PSI	51 SCFM
KSV10-125	1/4"	125 PSI	62 SCFM
KSV10-150	1/4"	150 PSI	73 SCFM
KSV10-175	1/4"	175 PSI	84 SCFM
