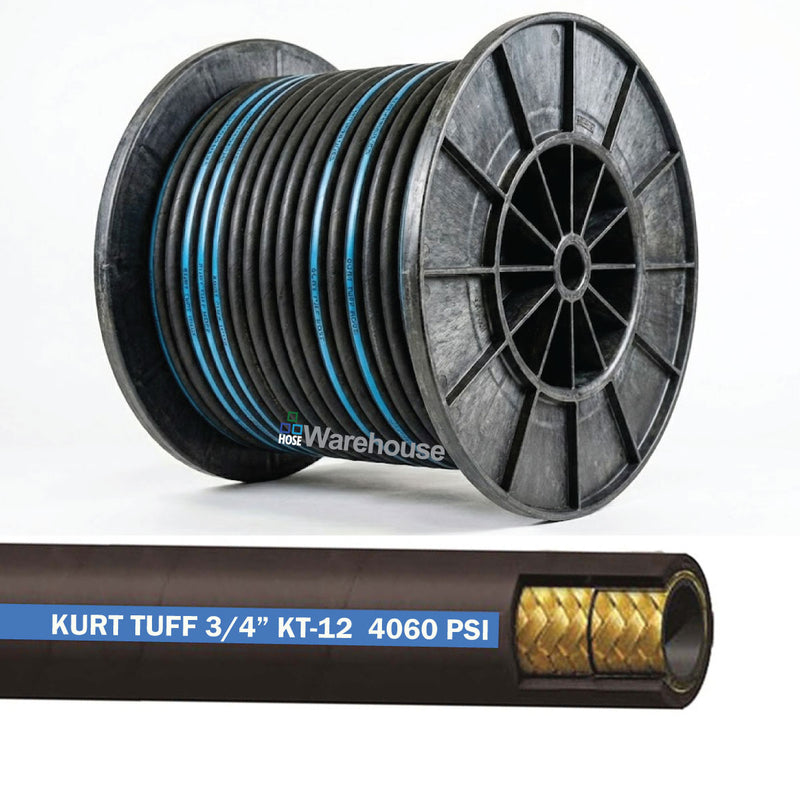

KT-12-Reel by Kurt | Hydraulics | Tuff One Million Cycle | Hydraulic Hose | 400' Reel Length

Save $1,216.00

$3,040.00

$3,040.00 - $3,040.00

$3,040.00

$1,824.00

$1,824.00 - $1,824.00

$1,824.00

by Kurt Hydraulics
KURT TUFF Hydraulic Hose

Kurt Fittings and Hose should only be used together.

Package Quantity: 400 Feet

Specifications for Variant SKU: KT-12-Reel Kurt \| 400 \|
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.09in
Tubing Construction:	Synthetic Rubber
Cover Construction:	Synthetic Rubber

Part Number	Hose I.D. (In)	Hose O.D. (In)	Rated W.P. (PSI)	Min. Burst (PSI)	Min. Bend (In)
KT-04-Reel	1/4"	0.58"	6530	26120	1.8"
KT-06-Reel	3/8"	0.69"	5585	22340	2.8"
KT-08-Reel	1/2"	0.81"	1000	20000	3.5"
KT-10-Reel	5/8"	0.93"	4205	16820	5.1"
KT-12-Reel	3/4"	1.09"	4060	16240	6.3"
KT-16-Reel	1"	1.40"	2900	11600	8.25"

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
