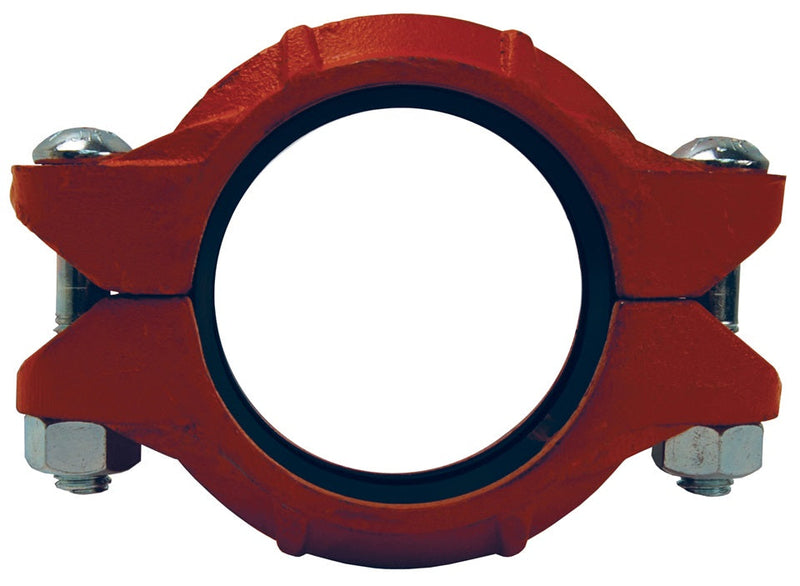

L04 by Dixon Valve | Grooved Lightweight Flexible Coupling | Series-L | Style 10 | 4" Nominal Size | 4.500" Pipe OD | EPDM Gasket | Ductile Iron

Save $10.63

$32.72

$32.72 - $32.72

$32.72

$22.09

$22.09 - $22.09

$22.09

Dixon Valve
Grooved Lightweight Flexible Coupling | Series-L | Style 10

Designed for applications requiring moderate internal pressure or where weight is a factor such as general purpose, mining, irrigation, and compressed air where a deflection of 5% or less is required.

Quantity

Specifications for Variant SKU: L04 Dixon
Series:	Series-L
Shape (Orientation):	Straight
Material(s):	Ductile Iron
Seal Material(s):	EPDM
Maximum Clamp I.D.:	4.5

Materials:
Ductile iron body with rust inhibiting paint.
Approvals:
UL listed and Factory Mutual approved.
Comparable to:
Victaulic's #75 Grinnell's #7000


Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Bolts			Dimensions
Ductile Iron with EPDM Gasket Part Number	Ductile Iron with Nitrile Rubber Gasket Part Number	Nominal Size	Pipe O.D.	Maximum Working Pressure PSI at 70°F (21°C)	Maximum End Load (Lbs.)	Qty	Size	Length	A	B	C
L215	L215BU	1-1/2"	1.900"	500 PSI	1418 lbs	2	3/8"	2-1/4"	4-1/2"	2-29/32"	1-25/32"
L02	L02BU	2"	2.375"	500 PSI	2215 lbs	2	3/8"	2"	4-7/8"	3-25/64"	1-27/32"
L025	L025BU	2-1/2"	2.875"	300 PSI	3246 lbs	2	3/8"	2"	5-15/32"	3-45/64"	1-27/32"
L03	L03BU	3"	3.500"	300 PSI	4811 lbs	2	1/2"	2-3/4"	6-27/64"	4-39/64"	1-27/32"
L04	L04BU	4"	4.500"	300 PSI	6362 lbs	2	1/2"	2-3/4"	7-33/64"	5-7/8"	2-1/64"
L05	L05BU	5"	5.563"	300 PSI	9722 lbs	2	5/8"	3-1/4"	9-17/32"	7-3/32"	2-1/64"
L06	L06BU	6"	6.625"	300 PSI	13789 lbs	2	5/8"	3-1/4"	10-7/16"	8-7/64"	2-3/64"
L08	L08BU	8"	8.625"	300 PSI	20449 lbs	2	3/4"	4-1/4"	13-15/32"	10-5/32"	2-13/32"
