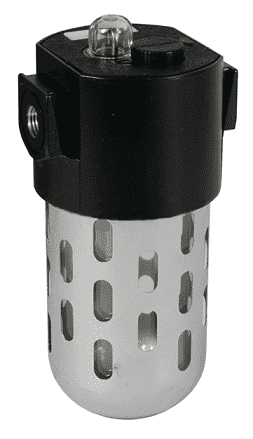

L26-02A Dixon Wilkerson 1/4" EconOmist Standard Lubricator with Transparent Bowl - 35 SCFM

L26-02A Dixon Valve Wilkerson 1/4" EconOmist Standard Lubricator with Transparent Bowl - 35 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson EconOmist® Standard Lubricators Flow Guide®: The elastomer disc-shaped device is located in the throat of all Wilkerson lubricators and automatically maintains a constant ratio of oil flow to airflow regardless of changing rates of airflow. This allows one lubricator to serve several pneumatic components operating together or intermittently. Type of oil to use: For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use any synthetic oil or oils containing additives or solvents. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: L26-02A Dixon
Features:
  • 10 oz. bowl.
  • Adjustable oil feed.
  • Can be filled under pressure.
  • Quick-disconnect metal bowl guard with integral safety latch.
  • Siphon tube filter provides clean lubricant downstream.
  • The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery. If flow increases or decreases, the oil delivery rate will increase or decrease proportionally.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Transparent Bowl
L26-02A 1/4" 35 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.1535
L26-03A 3/8" 60 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.3500
L26-04A 1/2" 128 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.2700
With Metal Bowl
L26-02AMB 1/4" 35 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 3.0310
L26-03AMB 3/8" 60 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.7450
L26-04AMB 1/2" 128 200 (13.61 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.9600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
