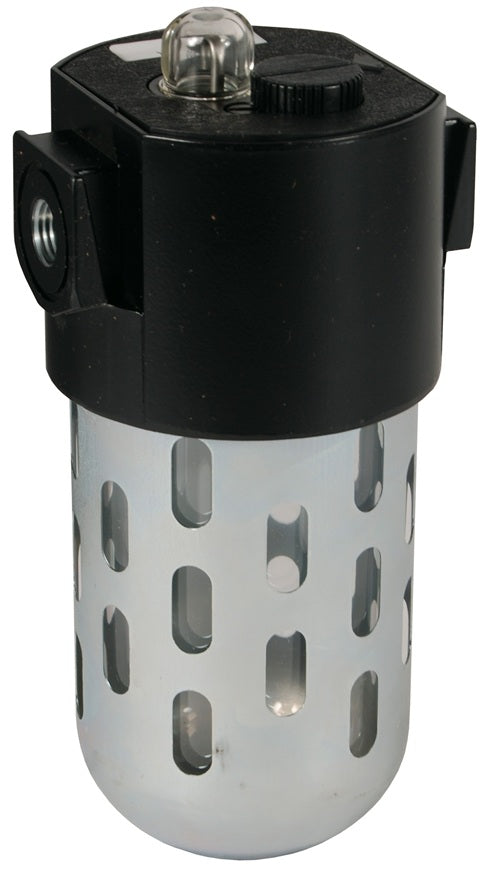

L26-04A Wilkerson EconOmist® by Dixon Valve | L26-Series | Standard Lubricator | 1/2" Size | 128 SCFM | 10 oz. Transparent Bowl

L26-04A Wilkerson EconOmist® by Dixon Valve | L26-Series | Standard Lubricator | 1/2" Size | 128 SCFM | 10 oz. Transparent Bowl

Save $15.27 Save $15.27
$180.91
$180.91 - $180.91
$180.91
$165.64
$165.64 - $165.64
$165.64

Dixon Valve
Wilkerson | L26-Series | EconOmist® Standard Lubricator

- 10 oz. bowl
- Adjustable oil feed
Specifications for Variant SKU: L26-04A Dixon
Brand: Wilkerson
Series: EconOmist, L26-Series
Flow Guide®:
  • The elastomer disc-shaped device is located in the throat of all Wilkerson lubricators and automatically maintains a constant ratio of oil flow to airflow regardless of changing rates of airflow. This allows one lubricator to serve several pneumatic components operating together or intermittently.
Type of Oil to Use:
  • For all Wilkerson lubricators, use any petroleum-base, non-detergent light weight oil (SAE 10/150SSU) which will readily break up into a mist, i.e., Mobil DTE light or comparable oil. Do not use synthetic oil or any oils containing additives or solvents.
Features:
  • 10 oz. bowl.
  • Adjustable oil feed.
  • Can be filled under pressure.
  • Quick-disconnect metal bowl guard with integral safety latch.
  • Siphon tube filter provides clean lubricant downstream.
  • The rate of oil delivery may be controlled by turning the adjusting screw counter clockwise for more and clockwise for less oil delivery. If flow increases or decreases, the oil delivery rate will increase or decrease proportionally.
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: 150 PSIG (10.3 bar) and 32°F to 125°F (0°C to 52°C)
    • Metal Bowl: 200 PSIG (13.8 bar) and 32°F to 150°F (0°C to 66°C)
  • FRL's are designed for air service only, unless otherwise indicated.
  • SCFM ratings at 150 PSIG inlet pressure.
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl*
Part Number		 Size Flow (SCFM)
L26-03A L26-03AMB 3/8" 60 SCFM
L26-04A L26-04AMB 1/2" 128 SCFM

* Metal bowl has sight gauge with brass petcock drain.
