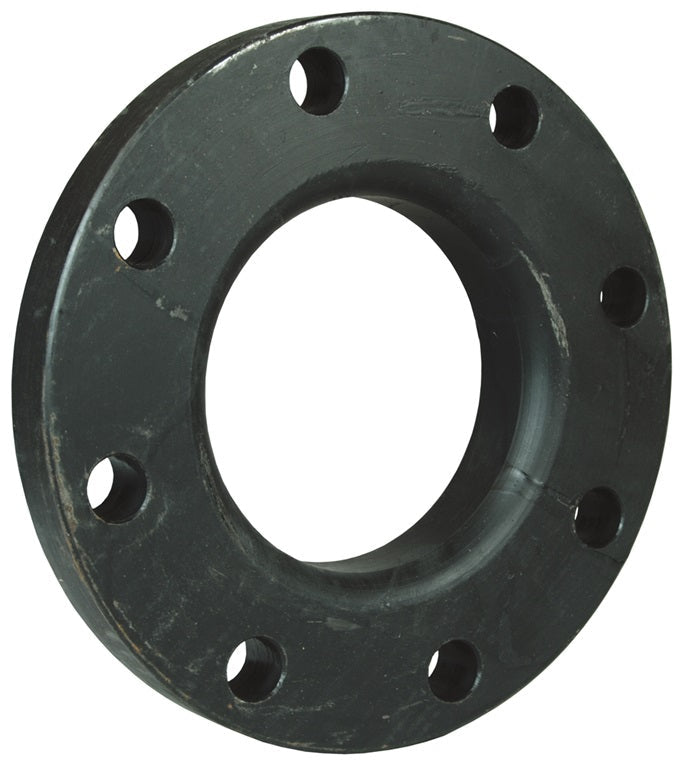

LJ400 by Dixon Valve | 150 Lb. ASA Forged Lap Joint Floating Flange | 8 Bolts | 4" Size | Carbon Steel

Name: LJ400 by Dixon Valve | 150 Lb. ASA Forged Lap Joint Floating Flange | 8 Bolts | 4" Size | Carbon Steel
Brand: Dixon
SKU: LJ400 Dixon
Price: 63.67 USD
Availability: InStock

$62.28 - $62.28

$62.28

$63.67

$63.67 - $63.67

$63.67

Dixon Valve
150 Lb. ASA Forged Lap Joint Flange

Commonly called a Van Stone or a floating flange.

Quantity

Specifications for Variant SKU: LJ400 Dixon
Shape (Orientation):	Straight
Ends Configuration:	4in 150# Flange, 4in 150# Flange, Some Ends Match
Material(s):	Carbon Steel

Features:
No raised face.


Carbon Steel Part Number	Size	Number of Bolts
LJ100	1"	4
LJ125	1-1/4"	4
LJ150	1-1/2"	4
LJ200	2"	4
LJ250	2-1/2"	4
LJ300	3"	4
LJ400	4"	8
LJ500	5"	8
LJ600	6"	8
LJ800	8"	8
LJ1000	10"	12
LJ1200	12"	12

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
