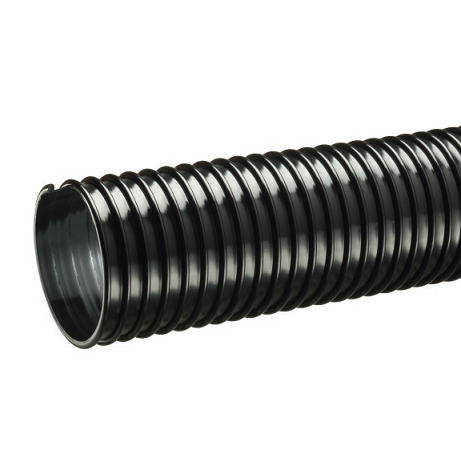

LK400X50 Kuriyama Tigerflex LK Series Lawn King PVC Ducting/Material Handling Hose - 4" - 50ft

LK400X50 Tigerflex by Kuriyama | LK Series | Lawn King Ducting/Material Handling Hose | 4" ID | PVC | 50ft Length

Save $143.40 Save $143.40
$501.90
$501.90 - $501.90
$501.90
$358.50
$358.50 - $358.50
$358.50

Kuriyama Tigerflex LK™ Series Lawn King PVC Ducting/Material Handling Hose


Package Quantity: 50 FT

Specifications for Variant SKU: LK400X50 Kuriyama | 50 |
Brand: Tigerflex
Series: LK Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Dust collection, Lawn and leaf collection, Material handling - light duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -20 deg. F (-29 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
Part Number ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
LK400X100 4" 101.6mm 4.45" 114.8mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.85 lbs
LK400X50 4" 101.6mm 4.45" 114.8mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.85 lbs
LK600X100 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 100ft 1.34 lbs
LK600X50 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.34 lbs
LK700X50 7" 177.8mm 7.56" 192.0mm 4 PSI 2 PSI 6 in. Hg 4 in. Hg 7" 50ft 1.53 lbs
LK800X50 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 2.00 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.Not for liquid handling use. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
