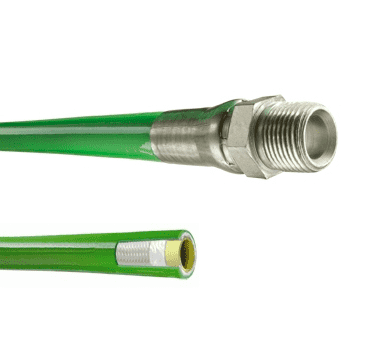

LLGR-MM04X100 Kuriyama Piranha® Jetting/Lateral Line Hose Assembly - Green - 1/4" Hose ID - 1/4-18 Male NPTF - 4000 PSI - 100ft

LLGR-MM04X100 by Kuriyama | Piranha® Jetting/Lateral Line Hose Assembly | Green | 1/4" Hose ID | 1/4-18 Male NPTF | 4000 PSI | 100ft Length

Save $12.96 Save $12.96
$129.70
$129.70 - $129.70
$129.70
$116.74
$116.74 - $116.74
$116.74

Kuriyama Piranha "Ready-To-Go" Stock Length Hose Assemblies - Jetting/Lateral Line Hose - Series LLGR - Male NPTF x Male NPTF - Green Cover
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: LLGR-MM04X100 Kuriyama
Brand: Piranha
Series: LLGR Series
Hose Color(s): Green
Internal Diameter: 0.25in
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match

SPECIFICATIONS

Application: High Pressure Sewer Cleaning - Applications for commercial, industrial and residential. Tight Pipe Bends - Slick, Slither® cover affords an easier handling hose to get the job done. Jetting/Lateral Line - Used for jetting equipment. SAE Rating: N/A
Other Ratings: N/A Inner Tube : Yellow seamless thermoplastic
Reinforcement: High tensile single synthetic fiber braid. Cover Material: Abrasion resistant polyether-urethane. (Standard) Slither®: Polyether-urethane low coefficient of friction.(Optional)
Temperature Range: -40 deg. F (-40 deg. C) to +160 deg. F (+71 deg. C) (For the diameters of 1/8", 3/16", 1/4" and 3/8") -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) (For the diameter of 1/2") Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha® Hose Product.
  • High Tensile Double Synthetic Fiber Braid - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyether-Urethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.
  • Slither® Cover - Cover is ultra slippery; allows hose to maneuver around and through difficult sewer bends.
  • Pressure Testing - All Piranha® factory-assembled hoses are 100% pressure tested.
  • Reel Installation - Ideal for truck and trailer mounts.
  • Green Cover = 4,000 PSI
  • Stock Lengths - 400, 500, and 600 foot rolls.
Part Number Size Code Hose I.D. Male NPTF Nom. Thread Size Working Pressure Assembled Length Weight
(in.) (Max PSI) (Lbs/Pack)
LLGR-MM02X100 02 1/8" 1/8 - 27 4000 PSI 100ft 4 lbs
LLGR-MM04X100 04 1/4" 1/4 - 18 4000 PSI 100ft 6 lbs
LLGR-MM04X200 04 1/4" 1/4 - 18 4000 PSI 200ft 12 lbs
LLGR-MM06X100 06 3/8" 3/8 - 18 4000 PSI 100ft 11 lbs
LLGR-MM06X150 06 3/8" 3/8 - 18 4000 PSI 150ft 15 lbs
LLGR-MM06X200 06 3/8" 3/8 - 18 4000 PSI 200ft 22 lbs
LLGR-MM06X250 06 3/8" 3/8 - 18 4000 PSI 250ft 28 lbs
LLGR-MM06X300 06 3/8" 3/8 - 18 4000 PSI 300ft 33 lbs
LLGR-MM08X100 08 1/2" 1/2 - 14 4000 PSI 100ft 16 lbs
LLGR-MM08X500 08 1/2" 1/2 - 14 4000 PSI 500ft 80 lbs
LLGR-MM08X600 08 1/2" 1/2 - 14 4000 PSI 600ft 96 lbs
LLGR-MS06X100 06 3/8" 3/8 - 18 4000 PSI 100ft 11 lbs
LLGR-MS06X200 06 3/8" 3/8 - 18 4000 PSI 200ft 22 lbs
LLGR-MS06X300 06 3/8" 3/8 - 18 4000 PSI 300ft 33 lbs
SLGR-MM06X250 06 3/8" 3/8 - 18 4000 PSI 250ft 28 lbs
