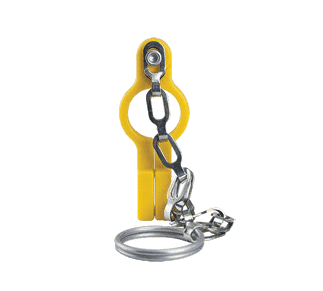

LO250 ZSi-Foster "Fost-Air" 3-Way Sleeve Valve Lockout with Chain - for 1/4" Male NPT

LO250 by ZSi-Foster | "Fost-Air" 3-Way Sleeve Valve Lockout with Chain | for 1/4" Male NPT

Save $0.51 Save $0.51
$4.58
$4.58 - $4.58
$4.58
$4.07
$4.07 - $4.07
$4.07

ZSi-Foster Quick Disconnect Couplings - 3-Way Sleeves with Optional Lockouts - "Fost-Air"
Specifications for Variant SKU: LO250 ZSi-Foster
Features:
  • Provides low cost ON-OFF-ExHAUST operation.
Features:
  • Slide the sleeve to the ON position. Exhaust ports are closed, valve is open. Reversing the sleeve, opens exhaust ports, shuts off flow.
  • Ports covered for protection against exhaust flow.
  • Body detent secures sleeve position.
  • Valve with lockout complies with OSHA Standard 29 CFR, Part 1910
  • Rated Pressure: to 200 PSIG
  • Temperature: -25 deg. to +200 deg.F
Part Number Male NPT Description
Three Way Sleeve Valves
3W125 1/8" Brass
3W250 1/4" Brass
3W375 3/8" Brass
3W500 1/2" Brass
Three Way Sleeve Valve Lockouts
LO250 1/4" Valve Lockout With Chain
LO375 3/8" Valve Lockout With Chain
LO500 1/2" Valve Lockout With Chain
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
