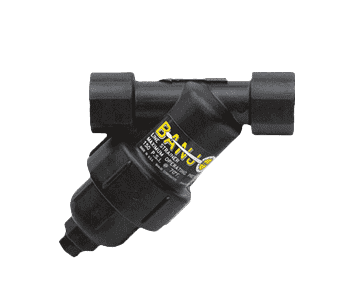

LS100-80 Banjo Polypropylene Y Strainer - 1" x 1" Female NPT with 80 Mesh Stainless Steel Screen - 150 PSI

LS100-80 by Banjo | Line Y Strainer | 1" x 1" Female NPT with 80 Mesh Stainless Steel Screen | 200 PSI | Polypropylene

Name: LS100-80 by Banjo | Line Y Strainer | 1" x 1" Female NPT with 80 Mesh Stainless Steel Screen | 200 PSI | Polypropylene
Brand: Banjo
SKU: LS100-80 Banjo
Price: 28.56 USD
Availability: InStock

Save $3.57

$32.13

$32.13 - $32.13

$32.13

$28.56

$28.56 - $28.56

$28.56

Banjo Line Strainers - Y Line Strainers - 1" Female NPT - Polypropylene

Quantity

Specifications for Variant SKU: LS100-80 Banjo

Applications:

Fluids
Agriculture
Industrial

Features:

Precision molded construction
Corrosion resistant
Lightweight
Fiberglass reinforced
Easy grip end cap
Poly ribbed 304 stainless steel screen
EPDM gaskets FKM (viton type) available
Heavy duty end cap threads
Clean-out plug
Female NPT x Female NPT
200 PSI maximum
Convenient color coded screens for easy mesh size identification. (Refer to chart below)

Other Data:

Screens		Standard Meshes & Data (For General Use Only)
Mesh Size	Rib Color	Microns	Wire Diameter	Opening	% Open Area
20 Mesh	Beige	841	.016	.034	46.2
40 Mesh	Brown	400	.010	.015	36.0
80 Mesh	Zinc Yellow	177	.0055	.007	31.4

Part Number	Description	Max PSI
LS100-20	1" x 1" Female NPT with 20 Mesh Screen	200 PSI
LS100-40	1" x 1" Female NPT with 40 Mesh Screen	200 PSI
LS100-80	1" x 1" Female NPT with 80 Mesh Screen	200 PSI


Replacement Parts for 1" - 1-1/4" Y Strainers
Item	Part Number	Description	Quantity Required
1	LS100-C1*	1" - 1-1/4" End Cap	1
2	LS100-G	1" - 1-1/4" O-Ring	1
2	LS100-GV	1" - 1-1/4" FKM (viton type) Gasket	1
3	12777	1/2" Plug (Fits 1" - 1-1/4")	1
4	UV15163	1" - 1-1/4" EPDM O-Ring for Drain Plug	1
4	UV15163V	1" - 1-1/4" FKM (viton type) O-Ring for Drain Plug	1
5	LS120	1" - 1-1/4" 20 Mesh Screen	1
5	LS140	1" - 1-1/4" 40 Mesh Screen	1
5	LS180	1" - 1-1/4" 80 Mesh Screen	1
7	LS125G	1" - 1-1/4" EPDM O-Ring	1
Not Shown	LS100B/C1	1" Y Body, Cap & Gasket	1
Not Shown	LS125B/C1	1-1/4" Y Body, Cap & Gasket	1

NOTE: Items marked with asterisk* include parts 1, 3, and 4.
