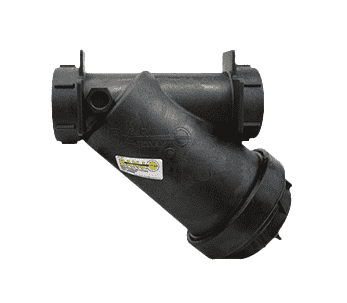

LSM300-50 Banjo Polypropylene Y Strainer - 3" x 3" Female NPT with 50 Mesh Screen - 75 PSI

LSM300-50 by Banjo | Line Y Strainer | 3" x 3" Female NPT with 50 304 Stainless Steel Mesh Screen | Gasket: EPDM | 75 PSI | Polypropylene

Save $46.52 Save $46.52
$418.67
$418.67 - $418.67
$418.67
$372.15
$372.15 - $372.15
$372.15

Banjo Line Strainers
Y Line Strainers - 3" Female NPT - with Stainless Steel Screens - Polypropylene
Specifications for Variant SKU: LSM300-50 Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • WARNING: 3" Polypropylene "Y" Strainer to be used on suction side or non-pressure side in all applications.
  • Lightweight
  • High volume
  • Constructed of glass reinforced polypropylene
  • 1/2" drain plug in bottom of cap
  • Reinforced 304 stainless steel screen
  • Female NPT x Female NPT
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
4 Mesh - - - - -
8 Mesh - 2380 .028 .097 60.2
12 Mesh Black 1680 .023 .060 51.8
20 Mesh Beige 841 .016 .034 46.2
50 Mesh Gentian Blue 297 .009 .011 30.3
Part Number Description Max PSI
LSM300-04 3" x 3" Female NPT with Mesh Screen 75 PSI
LSM300-08 3" x 3" Female NPT with Mesh Screen 75 PSI
LSM300-12 3" x 3" Female NPT with Mesh Screen 75 PSI
LSM300-20 3" x 3" Female NPT with Mesh Screen 75 PSI
LSM300-50 3" x 3" Female NPT with Mesh Screen 75 PSI
Replacement Parts for 3" Y Strainers
Item Part Number Description Quantity Required
1 MLS300B1 3" Poly Body 1
2 MLS300CAP 3" Cap 1
3 LS304 4 Mesh Screen 1
3 LS308 8 Mesh Screen 1
3 LS312 12 Mesh Screen 1
3 LS320 20 Mesh Screen 1
3 LS350 50 Mesh Screen 1
4 13777 3/4" Plug 1
5 13778 O-Ring 1
6 MLS300G EPDM Cap Gasket 1
7 MLS300ECG EPDM End Cap Gasket 1
7 MLS300ECGV FKM (viton type) Cap Gasket 1
8 LS300EC End Cap Only (Plug Sold Separately) 1
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
