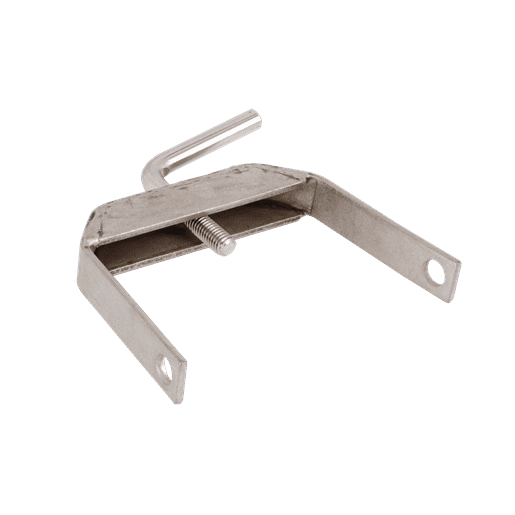

LSS300-H Banjo Stainless Steel Y Strainer - Handle/Clamp Assembly

LSS300-H by Banjo | Replacement Part for Y Strainer | 3" Handle/Clamp Assembly | 304 Stainless Steel

Save $7.87 Save $7.87
$70.86
$70.86 - $70.86
$70.86
$62.99
$62.99 - $62.99
$62.99

Banjo Line Strainers - Y Line Strainers - 3" Female NPT - with Stainless Steel Screens - Stainless Steel
Specifications for Variant SKU: LSS300-H Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • WARNING: 3" Polypropylene "Y" Strainer to be used on suction side or non-pressure side in all applications.
  • NOTE: 316 Stainless steel screens sold separately. See chart below
  • EPDM gaskets standard FKM (viton type) available
  • Corrosion resistant
  • Clean-out plug
  • Female NPT x Female NPT
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
6 Mesh White 3360 .035 .132 62.7
8 Mesh - 2380 .028 .097 60.2
12 Mesh Black 1680 .023 .060 51.8
20 Mesh Beige 841 .016 .034 46.2
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3

    Part Number Item Number Description Max PSI
    LSS300-S 4 EPDM Screen Seal 225 PSI
    LSS300-SV 4 FKM (viton type) Screen Seal 225 PSI
    LSS300-G 5 EPDM Cap Gasket 225 PSI
    LSS300-GV 5 FKM (viton type) Cap Gasket 225 PSI
    LSS300-H 6 Handle/Clamp Assembly N/A
    LSS306 7 6 Mesh SS Screen N/A
    LSS308 7 8 Mesh SS Screen N/A
    LSS312 7 12 Mesh SS Screen N/A
    LSS320 7 20 Mesh SS Screen N/A
    LSS330 7 30 Mesh SS Screen N/A
    LSS350 7 50 Mesh SS Screen N/A
