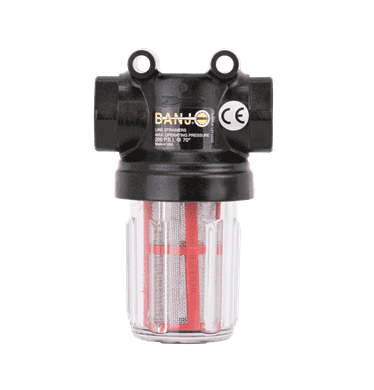

LSTM050-30C Banjo Polypropylene Mini T Line Strainer with Clear Bowl - 1/2" x 1/2" Strainer with 30 Mesh Screen - 100 PSI

LSTM050-30C by Banjo | Mini T Line Strainer with Clear Bowl | 1/2" x 1/2" Strainer with 30 Mesh Screen | Gasket: EPDM | 100 PSI | Polypropylene

Save $2.84 Save $2.84
$25.53
$25.53 - $25.53
$25.53
$22.69
$22.69 - $22.69
$22.69

Banjo Line Strainers - Mini "T" Line Strainers with Clear Bowls - 1/2" x 1/2" Female NPT - Polypropylene
Specifications for Variant SKU: LSTM050-30C Banjo
Applications:
  • Fluids
  • Agriculture
  • Industrial
Features:
  • Heavy-duty glass reinforced polypropylene.
  • Clear or black polypropylene bowl
  • Polypropylene ribbed 316 stainless steel screens
  • EPDM gaskets standard
  • Clear Bowl Max 100 PSI
  • Black Bowl Max 200 PSI
  • Note: Additional clearance required for screen removal: 2-3/4"
  • Convenient color coded screens for easy mesh size identification. (Refer to chart below)
Other Data:
Screens Standard Meshes & Data (For General Use Only)
Mesh Size Rib Color Microns Wire Diameter Opening % Open Area
30 Mesh Flame Red 595 .012 .021 40.8
50 Mesh Gentian Blue 297 .009 .011 30.3
80 Mesh Zinc Yellow 177 .0055 .007 31.4
100 Mesh Traffic Green 149 .0045 .005 30.3

    Part Number Description Max PSI
    LSTM050-30C 1/2" x 1/2" Female NPT Clear Bowl Strainer with 30 Mesh Screen 100 PSI
    LSTM050-50C 1/2" x 1/2" Female NPT Clear Bowl Strainer with 50 Mesh Screen 100 PSI
    LSTM050-80C 1/2" x 1/2" Female NPT Clear Bowl Strainer with 80 Mesh Screen 100 PSI

    Replacement Parts for LSTM050-C & LSTM075-C
    Item Part Number Description Quantity Required
    1 LSTM050G EPDM Gasket 1
    1 UV10264V FKM (viton type) O-Ring 1
    2 LST530 30 Mesh Screen 1
    2 LST550 50 Mesh Screen 1
    2 LST580 80 Mesh Screen 1
    2 LST5100 100 Mesh Screen 1
    3 LST050H 1/2" Strainer Head 1
    3 LST075H2 3/4" Strainer Head 1
    4 LST050BC Clear Bowl 1
    Banjo

    Banjo

    Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
