M-BSPP-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male BSPP 60° Cone | Carbon Steel

Name: M-BSPP-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male BSPP 60° Cone | Carbon Steel
Brand: Kurt Hydraulics
SKU: M-BSPP-04-06-K2 Kurt
Price: 40.88 USD
Availability: InStock

Save $5.11

$45.99

$45.99 - $45.99

$45.99

$40.88

$40.88 - $40.88

$40.88

Kurt Hydraulics
Male British Parallel Pipe 60° Cone Rigid

Quantity

Specifications for Variant SKU: M-BSPP-04-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb x 3/8in Male BSPP
Material(s):	Carbon Steel

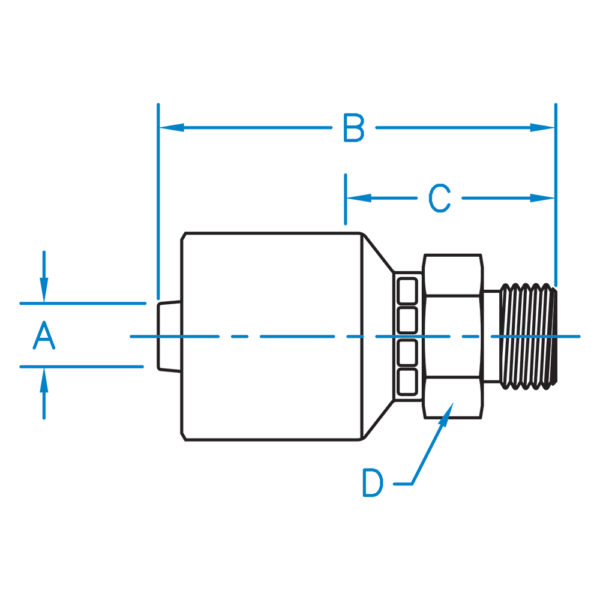

Part Number	Hose I.D. (in.)	B	C	D	Thread
M-BSPP-04-04-K2	1/4"	2.12"	1.04"	13/16"	1/4 – 19
M-BSPP-04-06-K2	1/4"	2.18"	1.12"	7/8"	3/8 – 19
M-BSPP-06-06-K2	3/8"	2.51"	1.14"	7/8"	3/8 – 19
M-BSPP-06-08-K2	3/8"	2.62"	1.25"	1-1/16"	1/2 – 14
M-BSPP-08-06-K2	1/2"	2.53"	1.19"	7/8"	3/8 – 19
M-BSPP-08-08-K2	1/2"	2.65"	1.31"	1-1/8"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
