M-BSPP-12-12-W by Kurt Hydraulics | Male British Parallel Pipe 60 Degree Cone | Rigid | for 3/4" Hose ID

Name: M-BSPP-12-12-W by Kurt Hydraulics | Male British Parallel Pipe 60 Degree Cone | Rigid | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: M-BSPP-12-12-W Kurt
Price: 32.23 USD
Availability: InStock

Save $21.49

$53.72

$53.72 - $53.72

$53.72

$32.23

$32.23 - $32.23

$32.23

by Kurt Hydraulics
M-BSPP-W - Male British Parallel Pipe 60 deg. Cone Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: M-BSPP-12-12-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male BSPP
Special Properties:	Rigid

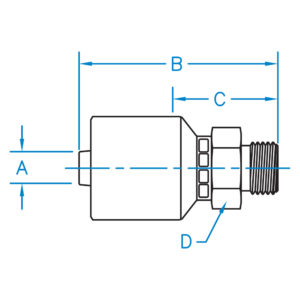

Part Number	A	B	C	D	Hose ID (In)	Thread
M-BSPP-06-06-W	0.375	2.506	1.136	7/8	3/8"	3/8-19
M-BSPP-06-08-W	0.375	2.621	1.251	1-1/16	3/8"	1/2-14
M-BSPP-08-08-W	0.500	2.646	1.306	1-1/8	1/2"	1/2-14
M-BSPP-08-10-W	0.500	2.646	1.306	1-1/8	1/2"	5/8-14
M-BSPP-12-12-W	0.750	3.269	1.390	1-3/8	3/4"	3/4-14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
