M-BSPT-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male BSPT 60° Cone | Carbon Steel

Name: M-BSPT-04-06-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 3/8" Male BSPT 60° Cone | Carbon Steel
Brand: Kurt Hydraulics
SKU: M-BSPT-04-06-K2 Kurt
Price: 37.87 USD
Availability: InStock

Save $25.25

$63.12

$63.12 - $63.12

$63.12

$37.87

$37.87 - $37.87

$37.87

Kurt Hydraulics
Male British Standard Pipe 60° Cone Rigid

Specifications for Variant SKU: M-BSPT-04-06-K2 Kurt
Series:	K2 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb x 3/8in Male BSPT
Material(s):	Carbon Steel

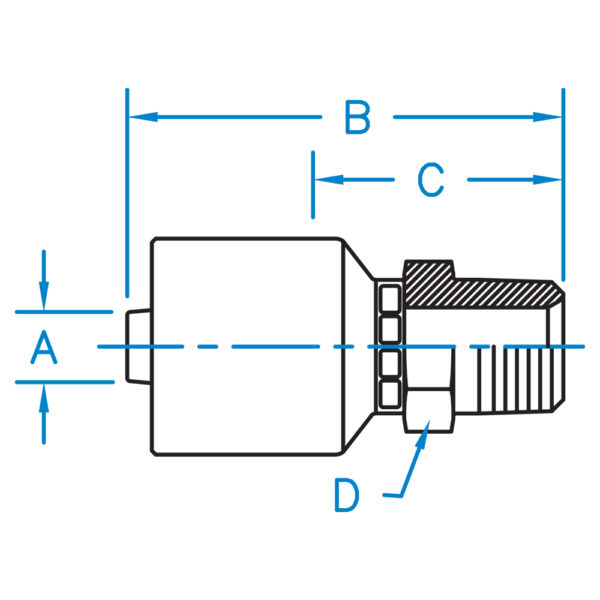

Part Number	Hose I.D. (in.)	B	C	D	Thread
M-BSPT-04-02-K2	1/4"	1.85"	0.79"	9/16"	1/8 – 27
M-BSPT-04-04-K2	1/4"	2.04"	0.98"	9/16"	1/4 – 19
M-BSPT-04-06-K2	1/4"	2.12"	1.06"	11/16"	3/8 – 19
M-BSPT-06-06-K2	3/8"	2.45"	1.08"	11/16"	3/8 – 19
M-BSPT-06-08-K2	3/8"	2.71"	1.34"	7/8"	1/2 – 14
M-BSPT-08-06-K2	1/2"	2.48"	1.14"	7/8"	3/8 – 19
M-BSPT-08-08-K2	1/2"	2.73"	1.39"	7/8"	1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
