M-DH06-08-16-W by Kurt Hydraulics | Male DIN Heavy 24 Degree Seat | Rigid | for 3/8" Hose ID

M-DH06-08-16-W by Kurt Hydraulics | Male DIN Heavy 24 Degree Seat | Rigid | for 3/8" Hose ID

Save $9.65 Save $9.65
$24.13
$24.13 - $24.13
$24.13
$14.48
$14.48 - $14.48
$14.48
by Kurt Hydraulics
M-DH-W - Din Heavy 24 deg. Seat Male Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: M-DH06-08-16-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, S16 Male DIN
Special Properties: Rigid

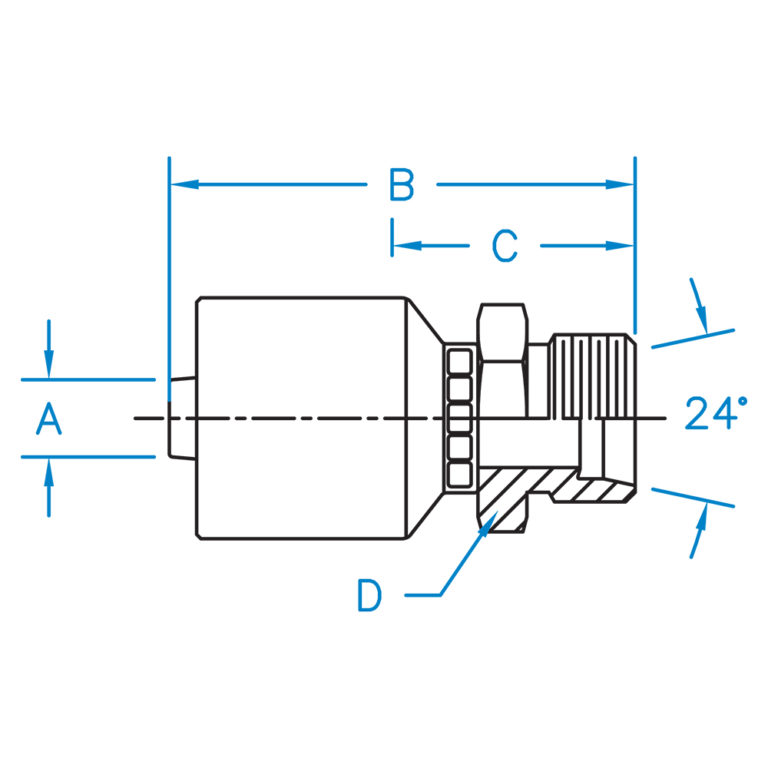

Part Number A B C D Hose ID
(In)		 Thread
M-DH06-08-16-W 0.375 2.427 1.057 11/16 3/8" M16 X 1.5
M-DH06-12-20-W 0.375 2.427 1.057 15/16 3/8" M20 X 1.5
M-DH06-14-22-W 0.375 2.515 1.145 7/8 3/8" M22 X 1.5
M-DH08-16-24-W 0.500 2.531 1.191 1.000 1/2" M24 X 1.5
M-DH10-20-30-W 0.625 3.440 1.340 1-3/16 5/8" M30 X 2.0
M-DH12-25-36-W 0.750 3.339 1.474 1-1/2 3/4" M36 X 2.0
M-DH16-30-42-W 1.000 3.677 1.552 1-11/16 1.000" M42 X 2.0


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
