M-DH06-14-22-W by Kurt Hydraulics | Male DIN Heavy 24 Degree Seat | Rigid | for 3/8" Hose ID

Name: M-DH06-14-22-W by Kurt Hydraulics | Male DIN Heavy 24 Degree Seat | Rigid | for 3/8" Hose ID
Brand: Kurt Hydraulics
SKU: M-DH06-14-22-W Kurt
Price: 12.93 USD
Availability: InStock

Save $1.62

$14.55

$14.55 - $14.55

$14.55

$12.93

$12.93 - $12.93

$12.93

by Kurt Hydraulics
M-DH-W - Din Heavy 24 deg. Seat Male Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: M-DH06-14-22-W Kurt
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, S22 Male DIN
Special Properties:	Rigid

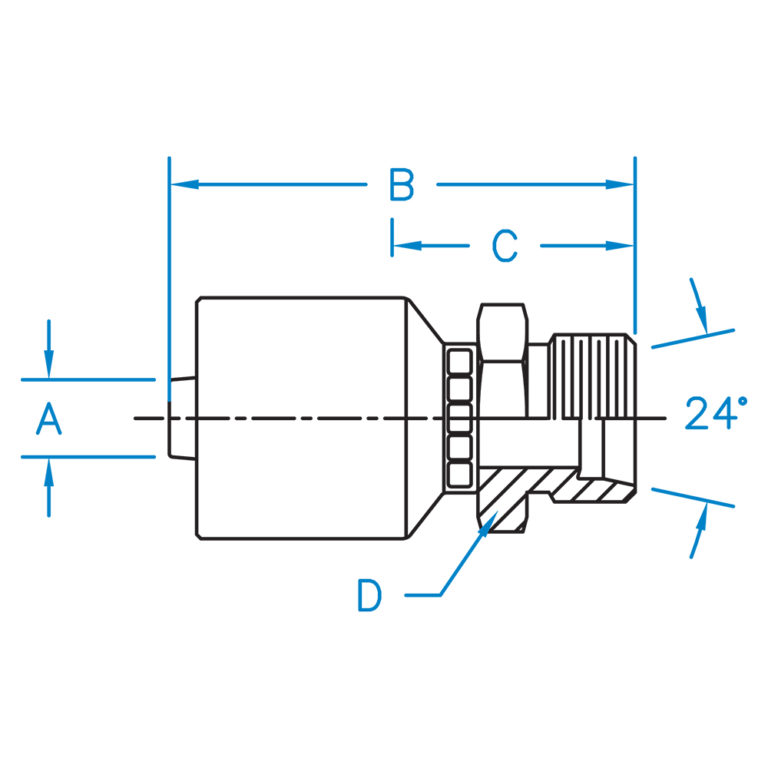

Part Number	A	B	C	D	Hose ID (In)	Thread
M-DH06-08-16-W	0.375	2.427	1.057	11/16	3/8"	M16 X 1.5
M-DH06-12-20-W	0.375	2.427	1.057	15/16	3/8"	M20 X 1.5
M-DH06-14-22-W	0.375	2.515	1.145	7/8	3/8"	M22 X 1.5
M-DH08-16-24-W	0.500	2.531	1.191	1.000	1/2"	M24 X 1.5
M-DH10-20-30-W	0.625	3.440	1.340	1-3/16	5/8"	M30 X 2.0
M-DH12-25-36-W	0.750	3.339	1.474	1-1/2	3/4"	M36 X 2.0
M-DH16-30-42-W	1.000	3.677	1.552	1-11/16	1.000"	M42 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
