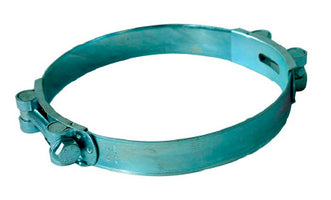

M10DC-450 Midland Buchanan M10DC Maxiclamp - 30mm Width - Clamp Range: 17.72" to 18.70" - Silver Zinc Plated Steel Band

M10DC-450 by Midland | Buchanan Maxiclamp | M10DC Series | 30mm Width | Clamp Range: 17.72" to 18.70" | Silver Zinc Plated Steel Band

Save $0.64

$5.77

$5.77 - $5.77

$5.77

$5.13

$5.13 - $5.13

$5.13

Midland Industries
Buchanan M10DC Maxiclamp

Inventory @ Manufacturers Warehouse: 18 Units

Quantity

Specifications for Variant SKU: M10DC-450 Midland
Material(s):	Silver Zinc Plated Steel
Clamp Width:	30mm
Minimum Clamp I.D.:	17.72
Maximum Clamp I.D.:	18.7

Features:
Silver (clear) zinc plated steel Band/Bridge/Trunnion/Sleeve/Bolt. 10mm silver zinc plated steel bolts 1.7mm thick x 30mm wide band Suggested installation torque 30 Nm (22 Ft lbs) Minimum breaking torque 40 Nm (29.5 ft lbs)

Part Number	Size	Range
M10DC-86	86mm - 91mm	3.38" - 3.58"
M10DC-92	92mm - 97mm	3.62" - 3.82"
M10DC-104	104mm - 112mm	4.09" - 4.41"
M10DC-113	113mm - 121mm	4.45" - 4.76"
M10DC-122	122mm - 130mm	4.80" - 5.12"
M10DC-131	131mm - 139mm	5.16" - 5.47"
M10DC-140	140mm - 148mm	5.51" - 5.83"
M10DC-149	149mm - 161mm	5.87" - 6.34"
M10DC-162	162mm - 174mm	6.38" - 6.85"
M10DC-175	175mm - 187mm	6.89" - 7.36"
M10DC-188	188mm - 200mm	7.40" - 7.87"
M10DC-200	200mm - 220mm	7.87" - 8.66"
M10DC-220	220mm - 240mm	8.66" - 9.45"
M10DC-240	240mm - 260mm	9.45" - 10.24"
M10DC-260	260mm - 280mm	10.24" - 11.02"
M10DC-280	280mm - 300mm	11.02" - 11.81"
M10DC-300	300mm - 325mm	11.81" - 12.80"
M10DC-325	325mm - 350mm	12.80" - 13.78"
M10DC-350	350mm - 375mm	13.78" - 14.76"
M10DC-375	375mm - 400mm	14.76" - 15.75"
M10DC-400	400mm - 425mm	15.75" - 16.73"
M10DC-425	425mm - 450mm	17.73" - 17.72"
M10DC-450	450mm - 475mm	17.72" - 18.70"
