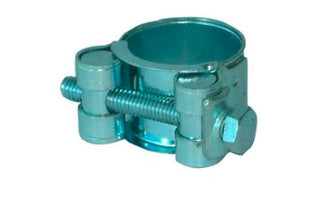

M6-32 by Midland | Buchanan M6 Maxi Clamp Light | 32-35mm Size | 0.79" Width | Hose OD Range: 1.26" to 1.41" | Silver Zinc Plated Steel Band & Bolt

Save $0.58

$5.23

$5.23 - $5.23

$5.23

$4.65

$4.65 - $4.65

$4.65

Midland Industries
Buchanan M6 Maxi Clamp Light - Silver Zinc Plated Steel

Quantity

Specifications for Variant SKU: M6-32 Midland
Material(s):	Silver Zinc Plated Steel

Features:
Clamp sizes for hose O.D. from 23mm to 43mm Silver (Clear) Zinc Plated Steel Band/Bridge/Trunnion/Sleeve/Bolt Band gauge from 0.6mm to 0.8mm depending upon clamp size Band width from 18mm to 20mm depending upon clamp size Bolt size from 5mm to 6mm depending upon clamp size Import

Part Number	Hose OD Size	Hose OD Decimal:		Width
Part Number	Hose OD Size	Min.	Max.	Width
M6-23	23-25mm	0.87"	1.01"	0.71"
M6-26	26-28mm	1.02"	1.13"	0.71"
M6-29	29-31mm	1.14"	1.25"	0.79"
M6-32	32-35mm	1.26"	1.41"	0.79"
M6-36	36-39mm	1.42"	1.56"	0.79"
M6-40	40-43mm	1.57"	1.72"	0.79"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
