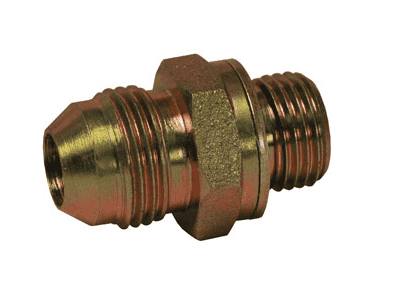

M7400-12-22 Dixon Zinc Plated Steel 1-1/16"-12 SAE Male 37 deg. JIC Flare x M22X1.5 Male Metric Parallel Thread

M7400-12-22 Dixon Valve Zinc Plated Steel 1-1/16"-12 SAE Male 37 deg. JIC Flare x M22X1.5 Male Metric Parallel Thread

Save $0.73 Save $0.73
$6.58
$6.58 - $6.58
$6.58
$5.85
$5.85 - $5.85
$5.85

Metric Fittings - Male 37 deg. JIC Flare x Male Metric Parallel Thread - Zinc Plated Steel
Specifications for Variant SKU: M7400-12-22 Dixon
Shape (Orientation): Straight
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE 37 deg. JIC Male Male Metric Thread Weight (Lbs.)
M7400-4-10 7/16"-20 M10X1.0 N/A
M7400-4-12 7/16"-20 M12X1.5 N/A
M7400-6-14 9/16"-18 M14X1.5 N/A
M7400-6-16 9/16"-18 M16X1.5 N/A
M7400-8-16 3/4"-16 M16X1.5 N/A
M7400-8-18 3/4"-16 M18X1.5 N/A
M7400-12-22 1-1/16"-12 M22X1.5 N/A
M7400-12-27 1-1/16"-12 M27X2.0 N/A
M7400-16-33 1-5/16"-12 M33X2.0 N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
