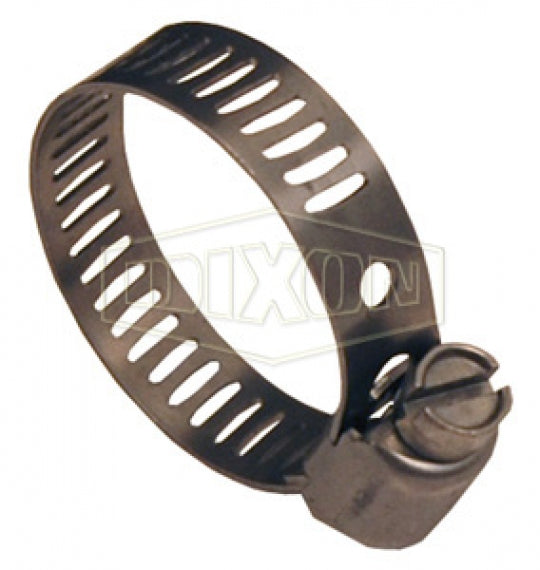

MAH12 by Dixon Valve | Style MAH | Miniature Worm Gear Clamp | 5/16" Band Width | Hose OD Range: from 11/16" to 1-1/4" | SAE 300 Stainless Steel Band & Screw

MAH12 by Dixon Valve | Style MAH | Miniature Worm Gear Clamp | 5/16" Band Width | Hose OD Range: from 11/16" to 1-1/4" | SAE 300 Stainless Steel Band & Screw | Box of 10

Save $1.50 Save $1.50
$13.50
$13.50 - $13.50
$13.50
$12.00
$12.00 - $12.00
$12.00

Dixon Valve
Miniature Worm Gear Clamps | Style MAH


Package Quantity: 10 EA

Specifications for Variant SKU: MAH12 Dixon | 10 |
Series: Style MAH
Material(s): 300 Stainless Steel
Special Properties: Mini/Micro Size
Clamp Width: 0.3125
Minimum Clamp I.D.: 0.6875
Maximum Clamp I.D.: 1.25
Features:
  • Maximum recommended torque 15 in. lbs.
  • Screw design: 1/4" slotted hex head.
Materials:
  • Style MH
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 1018 case-hardened, hex-free chrome zinc plated steel.
  • Style MAH
    • Band and housing: SAE 300-series stainless.
    • Screw: SAE 300-series stainless.
Approval:
  • Meets SAE J1508.
Style MH
Part Number		 Style MAH
Part Number		 Band Width Hose OD
From To
MH4 MAH4 5/16" 7/32" 5/8"
MH6 MAH6 5/16" 7/16" 25/32"
MH8 MAH8 5/16" 1/2" 29/32"
MH10 MAH10 5/16" 9/16" 1-1/16"
MH12 MAH12 5/16" 11/16" 1-1/4"
MH16 MAH16 5/16" 15/16" 1-1/2"
MH20 MAH20 5/16" 1-3/16" 1-3/4"
