MANTEX-1.5-100 by Texcel | MANTEX Series | Lay-Flat Air Hose | 1-1/2" Hose ID | 0.10" Wall Thickness | 1235 Burst PSI | Yellow

$5.67 - $472.37

$5.67

$4.05

$4.05 - $337.41

$4.05

Texcel
MANTEX Series | Lay-Flat Compressed air applications hose.

Quantity

Specifications for Variant SKU: MANTEX-1.5-100 Texcel \| 100 \|
Series:	MANTEX Series
Hose Color(s):	Yellow
Internal Diameter:	1.50in

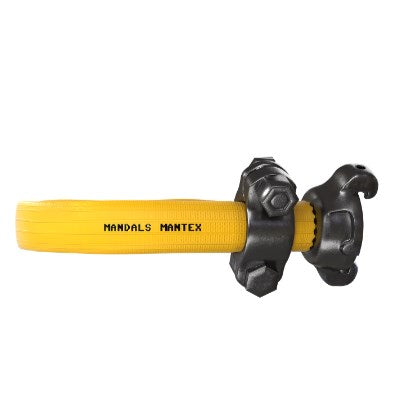

Mandals MANTEX \| High-Pressure Compressed Air Hose
Mandals Mantex is a flexible, yet tough and lightweight hose designed for compressed air applications. The hose can also be used to transport a wide range of liquids, from sewage to snow production.
Applications: Compressed air Withstands higher working pressures Design: Made from a blend of nitrile rubber with an added UV barrier for protection Strong weave fully embedded in nitrile rubber for solid construction Features: Lightweight construction combined with higher pressure ratings Added UV barrier and high-quality adhesion between layers for longer life High-strength and durable materials Advantages: Field-proven hose Maximum temperature up to +230°F Coils easily for storage and transport

ID (Inch)	Part Number	Wall Thickness (in / mm)	Weight (lbs/ft)	Burst Pressure (psi)	Tensile Strength (lbs)
3/4"	MANTEX-.75-100	0.09 / 2.3	0.14	1450	4,200
1"	MANTEX-1.0-100	0.10 / 2.5	0.18	1450	5,100
1-1/2"	MANTEX-1.5-100	0.10 / 2.5	0.25	1235	7,700
2"	MANTEX-2.0-100	0.10 / 2.5	0.35	870	10,400
2-1/2"	MANTEX-2.5-100	0.11 / 2.9	0.45	725	14,800
3"	MANTEX-3.0-100	0.12 / 3.1	0.63	725	17,900

Texcel

For all industrial hose and couplings, fluid sealing products, and hydraulic hose and fittings. Experts in the business for nearly 40 years.
