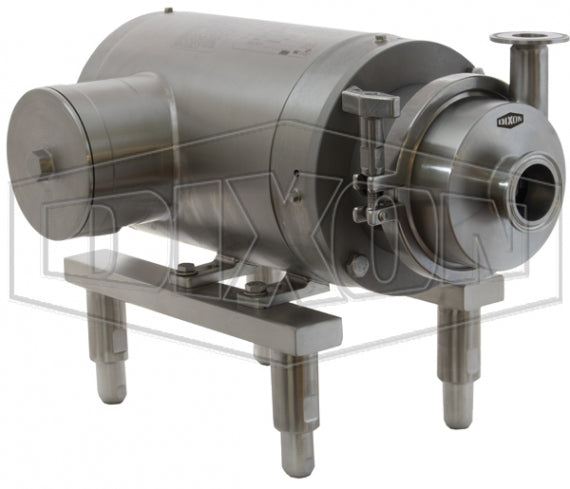

MB15A01C1EA Dixon Valve MB100 Series Sanitary Centrifugal Pump Wet End - Clamp End - EPDM Elastomer - 1-1/2" Inlet x 1" Outlet

MB15A01C1EA Dixon Valve MB100 Series Sanitary Centrifugal Pump Wet End - Clamp End - EPDM Elastomer - 1-1/2" Inlet x 1" Outlet

$0.00 - $0.00
$0.00
$1,030.87
$1,030.87 - $1,030.87
$1,030.87

Dixon Sanitary Fittings
MB100 Series Sanitary Centrifugal Pump Wet End

Used for food processing, dairy, beverage, winery and brewery markets.

Wet end mounts to a standard 56C frame motor.
Specifications for Variant SKU: MB15A01C1EA Dixon
Features:
  • Standard Clamp - Uses a standard 4” tube clamp for easy removal and adjustment of the casing. Eliminates post and tab construction.
  • Seal Design - Robust single mechanical seal design with silicon carbide stationary seal-face and carbon rotary seal-face.
  • Seal Performance - Efficient seal path promotes seal cooling and provides less restrictions to adequately clean the seal.
  • Impeller & Shaft Design - Sealed impeller provides optimal hygienic performance while the split shaft compression collar improves shaft concentricity, reduces vibration, and improves seal life.
  • Drop-in replacement for other C-100 series pumps.
Construction:
  • All product contact steel surfaces: 316L Stainless Steel
  • All non-product contact steel surfaces: 304 Stainless Steel
Specifications:
  • Maximum capacity: 75 GPM
  • Maximum temperature: 212°F (100°C)
  • Surface ID finish: <32Ra
  • Connections: clamp
  • Elastomers: FDA 21CFR 177.2600 and 3A 18-03 Class I
  • Weight: 9 lbs without motor
  • Frame size: NEMA 56C
Note:
  • Please reference the pump curve to determine if your duty point falls within the specification you have selected.
    Pump Curve PDF
Manuals:
Part Number Connection
Type		 Elastomer Maximum Impeller
Diameter		 Seal Inlet Outlet
MB15A01C1EA Clamp EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1"
MB15A01C1VA Clamp FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1"
