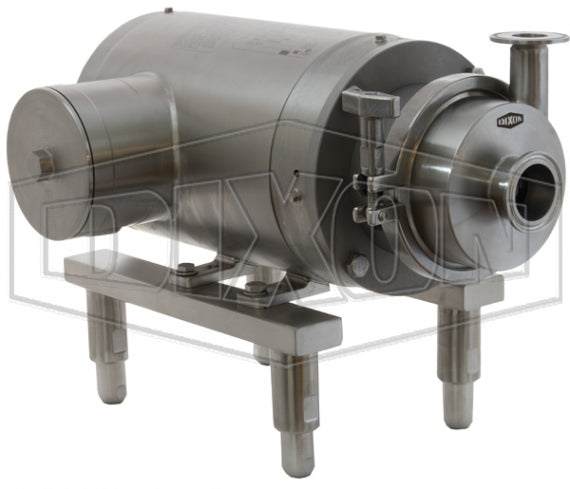

MB15A01C1EA1A02 Dixon Valve MB100 Series Sanitary Centrifugal Pump - 1-1/2" Inlet x 1" Outlet - EPDM Elastomer - Baldor SS Washdown Motor - 1PH/60Hz 115/230V - 1.0HP

MB15A01C1EA1A02 Dixon Valve MB100 Series Sanitary Centrifugal Pump - 1-1/2" Inlet x 1" Outlet - EPDM Elastomer - Baldor SS Washdown Motor - 1PH/60Hz 115/230V - 1.0HP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
MB100 Series Sanitary Centrifugal Pump
Motor Pump Units Single Phase Power

Used for food processing, dairy, beverage, winery and brewery markets.
Specifications for Variant SKU: MB15A01C1EA1A02 Dixon
Features:
  • Standard Clamp – Uses a standard 4” tube clamp for easy removal and adjustment of the casing. Eliminates post and tab construction.
  • Seal Design – Robust single mechanical seal design with silicon carbide stationary seal-face and carbon rotary seal-face.
  • Seal Performance – Efficient seal path promotes seal cooling and provides less restrictions to adequately clean the seal.
  • Impeller & Shaft Design – Sealed impeller provides optimal hygienic performance while the split shaft compression collar improves shaft concentricity, reduces vibration, and improves seal life.
  • Drop-in replacement for other C-100 series pumps.
  • Wet end mounts to a standard 56C frame motor.
Construction:
  • All product contact steel surfaces: 316L Stainless Steel
  • All non-product contact steel surfaces: 304 Stainless Steel
Specifications:
  • Maximum capacity: 75 GPM
  • Maximum temperature: 212°F (100°C)
  • Surface ID finish: <32Ra (ID mech. polish)
  • Connections: clamp
  • Elastomers: FDA 21CFR 177.2600 and 3A 18-03 Class I
  • Weight: 9 lbs without motor
  • Frame size: NEMA 56C
Note:
  • Please reference the pump curve to determine if your duty point falls within the specification you have selected.
    Pump Curve PDF
Manuals:
Part Number Connection
Type		 Motor
Electrical		 Motor
Enclosure		 Elastomer Max. Impeller
Diameter		 Seal Inlet Outlet RPM Horsepower
MB15A01C1EA1A01 Clamp 1PH/60Hz 115/230V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1EA1A02 Clamp 1PH/60Hz 115/230V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA1A04 Clamp 1PH/60Hz 115/230V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA1B01 Clamp 3PH/60Hz 208-230/460V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1EA1B02 Clamp 3PH/60Hz 208-230/460V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA1B03 Clamp 3PH/60Hz 208-230/460V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1EA1B04 Clamp 3PH/60Hz 208-230/460V Baldor SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA2A04 Clamp 1PH/60Hz 115/230V Sterling SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA2B01 Clamp 3PH/60Hz 208-230/460V Sterling SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1EA2B02 Clamp 3PH/60Hz 208-230/460V Sterling SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA2B03 Clamp 3PH/60Hz 208-230/460V Sterling SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1EA2B04 Clamp 3PH/60Hz 208-230/460V Sterling SS Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA3A02 Clamp 1PH/60Hz 115/230V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA3A03 Clamp 1PH/60Hz 115/230V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1EA3A04 Clamp 1PH/60Hz 115/230V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA3B01 Clamp 3PH/60Hz 208-230/460V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1EA3B02 Clamp 3PH/60Hz 208-230/460V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA3B03 Clamp 3PH/60Hz 208-230/460V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1EA3B04 Clamp 3PH/60Hz 208-230/460V Baldor White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA4A04 Clamp 1PH/60Hz 115/230V Sterling White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1EA4B01 Clamp 3PH/60Hz 208-230/460V Sterling White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1EA4B02 Clamp 3PH/60Hz 208-230/460V Sterling White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1EA4B03 Clamp 3PH/60Hz 208-230/460V Sterling White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1EA4B04 Clamp 3PH/60Hz 208-230/460V Sterling White Epoxy Painted Washdown EPDM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
