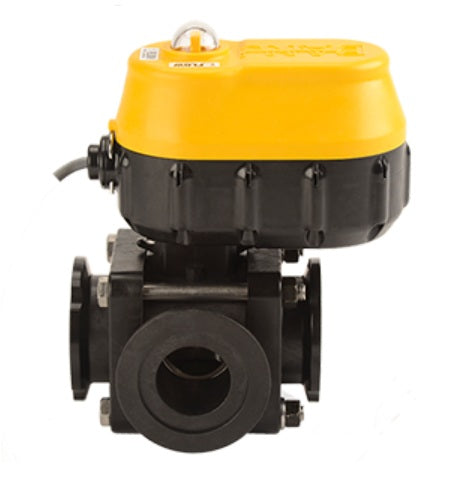

MEVX200BL by Banjo | Manifold Flange Connection | MEVX Side Load Electric Valve | Standard Port | 2" Pipe Size | 1-1/2" Opening Thru Ball | FKM Seals | Polypropylene

Save $357.95

$894.88

$894.88 - $894.88

$894.88

$536.93

$536.93 - $536.93

$536.93

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX Side Load Electric Valve | Standard Port

Specifications for Variant SKU: MEVX200SL Banjo
Series:	MEVX Series
Shape (Orientation):	Tee
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. ON/OFF 1" has 3/4 second response. ON/OFF 2" has 1-1/2 second response. ON/OFF 3" has 4 second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. 1"-2" On/Off Actuator rated to 500,000 cycles. 3" On/Off & Regulating Actuator rated to 250,000 cycles. Valve rated to 50,000 cycles leak-free. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene Zinc alloy lower actuator housing (3" only) PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Thru Ball	Repair Kit
MEVX100SL	1" Full Port Mainfold Side Load Electric Valve	300 PSI	1"	1"	VP20153SH	EVX10200
MEVX200SL	2" Standard Port Mainfold Side Load Electric Valve	250 PSI	2"	1-1/2"	VP20153	EVX20200
MEVX220SL	2" Full Port Mainfold Side Load Electric Valve	125 PSI	2"	2"	VP20153	EVX25200

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
