MF-06-06 by Kurt Hydraulics | Male O-Ring Face Seal | for 3/8" Hose ID

MF-06-06 by Kurt Hydraulics | Male O-Ring Face Seal | for 3/8" Hose ID

Save $0.77 Save $0.77
$6.90
$6.90 - $6.90
$6.90
$6.13
$6.13 - $6.13
$6.13

by Kurt Hydraulics
MF - Male O-Ring Face Seal Rigid

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MF-06-06 Kurt
Series: MF Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 3/8in Male O-Ring Face Seal

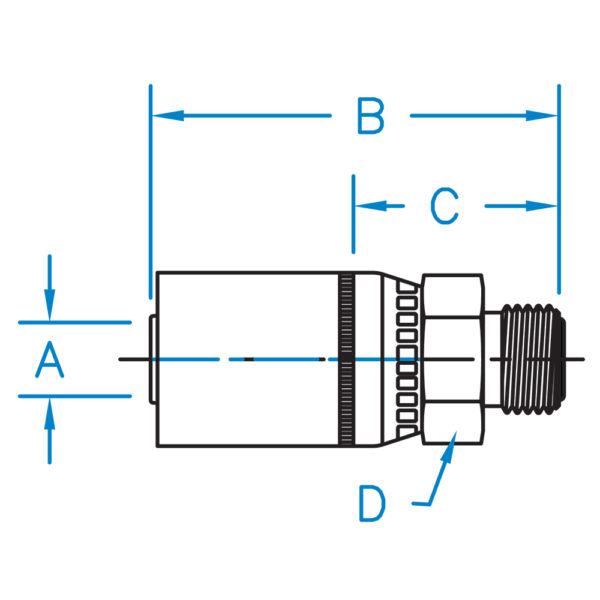

Part Number A B C D Hose ID
(In)		 Thread
MF-04-04 0.250 2.338 1.070 5/8 1/4" 9/16-18
MF-04-06 0.250 2.191 0.936 11/16 1/4" 11/16-16
MF-06-06 0.375 2.452 0.952 11/16 3/8" 11/16-16
MF-06-08 0.375 2.515 1.015 7/8 3/8" 13/16-16
MF-08-08 0.500 2.593 1.093 7/8 1/2" 13/16-16
MF-08-10 0.500 2.855 1.355 1-1/16 1/2" 1-14
MF-08-12 0.500 2.915 1.415 1-1/4 1/2" 1-3/16-12
MF-10-10 0.625 2.871 1.371 1-1/8 5/8" 1-14
MF-10-12 0.625 2.931 1.431 1-1/4 5/8" 1-3/16-12
MF-12-12 0.750 3.024 1.431 1-1/4 3/4" 1-3/16-12
MF-12-16 N/A N/A N/A N/A N/A N/A
MF-16-16 1.000 3.199 1.465 1-1/2 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
