MF-08-10-W by Kurt Hydraulics | Jump Size | Male Face Seal | Rigid | for 1/2" Hose ID

MF-08-10-W by Kurt Hydraulics | Jump Size | Male Face Seal | Rigid | for 1/2" Hose ID

Save $1.21 Save $1.21
$10.90
$10.90 - $10.90
$10.90
$9.69
$9.69 - $9.69
$9.69
by Kurt Hydraulics
MF-W - Male Face Seal Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MF-08-10-W Kurt
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 5/8in Male Face Seal
Special Properties: Jump Size, Rigid

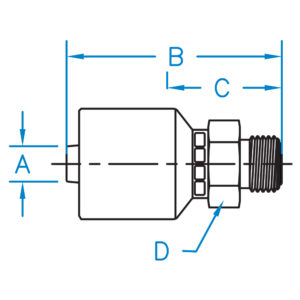

Part Number A B C D Hose ID
(In)		 Thread
MF-06-06-W 0.375 2.241 0.871 11/16 3/8" 11/16-16
MF-06-08-W 0.375 2.304 0.934 7/8 3/8" 13/16-16
MF-08-08-W 0.500 2.329 0.989 7/8 1/2" 13/16-16
MF-08-10-W 0.500 2.591 1.251 1-1/16 1/2" 1-14
MF-08-12-W N/A N/A N/A N/A N/A N/A
MF-10-10-W 0.625 3.421 1.321 1-1/16 5/8" 1-14
MF-10-12-W 0.625 3.481 1.381 1-1/4 5/8" 1-13/16-12
MF-12-12-W 0.750 3.215 1.336 1-1/4 3/4" 1-13/16-12
MF-12-16-W N/A N/A N/A N/A N/A N/A
MF-16-16-W 1.000 3.479 1.354 1-1/2 1.000" 1-7/16-12


Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
