MF-12-12-W by Kurt Hydraulics | Male Face Seal | Rigid | for 3/4" Hose ID

Name: MF-12-12-W by Kurt Hydraulics | Male Face Seal | Rigid | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: MF-12-12-W Kurt
Price: 24.05 USD
Availability: InStock

Save $16.03

$40.08

$40.08 - $40.08

$40.08

$24.05

$24.05 - $24.05

$24.05

by Kurt Hydraulics
MF-W - Male Face Seal Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MF-12-12-W Kurt
Series:	W Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male Face Seal
Special Properties:	Rigid

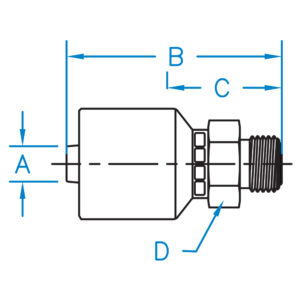

Part Number	A	B	C	D	Hose ID (In)	Thread
MF-06-06-W	0.375	2.241	0.871	11/16	3/8"	11/16-16
MF-06-08-W	0.375	2.304	0.934	7/8	3/8"	13/16-16
MF-08-08-W	0.500	2.329	0.989	7/8	1/2"	13/16-16
MF-08-10-W	0.500	2.591	1.251	1-1/16	1/2"	1-14
MF-08-12-W	N/A	N/A	N/A	N/A	N/A	N/A
MF-10-10-W	0.625	3.421	1.321	1-1/16	5/8"	1-14
MF-10-12-W	0.625	3.481	1.381	1-1/4	5/8"	1-13/16-12
MF-12-12-W	0.750	3.215	1.336	1-1/4	3/4"	1-13/16-12
MF-12-16-W	N/A	N/A	N/A	N/A	N/A	N/A
MF-16-16-W	1.000	3.479	1.354	1-1/2	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
