MF-12-16 by Kurt Hydraulics | Jump Size | Male O-Ring Face Seal | for 3/4" Hose ID

Name: MF-12-16 by Kurt Hydraulics | Jump Size | Male O-Ring Face Seal | for 3/4" Hose ID
Brand: Kurt Hydraulics
SKU: MF-12-16 Kurt
Price: 30.99 USD
Availability: InStock

Save $3.87

$34.86

$34.86 - $34.86

$34.86

$30.99

$30.99 - $30.99

$30.99

by Kurt Hydraulics
MF - Male O-Ring Face Seal Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MF-12-16 Kurt
Series:	MF Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 1in Male O-Ring Face Seal
Special Properties:	Jump Size

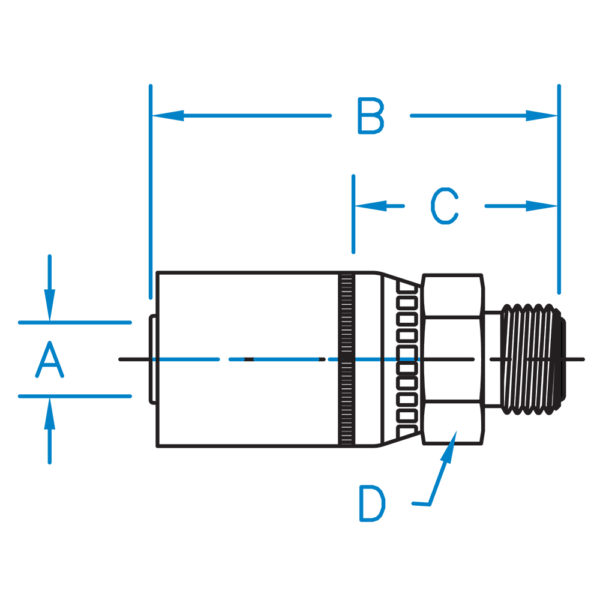

Part Number	A	B	C	D	Hose ID (In)	Thread
MF-04-04	0.250	2.338	1.070	5/8	1/4"	9/16-18
MF-04-06	0.250	2.191	0.936	11/16	1/4"	11/16-16
MF-06-06	0.375	2.452	0.952	11/16	3/8"	11/16-16
MF-06-08	0.375	2.515	1.015	7/8	3/8"	13/16-16
MF-08-08	0.500	2.593	1.093	7/8	1/2"	13/16-16
MF-08-10	0.500	2.855	1.355	1-1/16	1/2"	1-14
MF-08-12	0.500	2.915	1.415	1-1/4	1/2"	1-3/16-12
MF-10-10	0.625	2.871	1.371	1-1/8	5/8"	1-14
MF-10-12	0.625	2.931	1.431	1-1/4	5/8"	1-3/16-12
MF-12-12	0.750	3.024	1.431	1-1/4	3/4"	1-3/16-12
MF-12-16	N/A	N/A	N/A	N/A	N/A	N/A
MF-16-16	1.000	3.199	1.465	1-1/2	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
