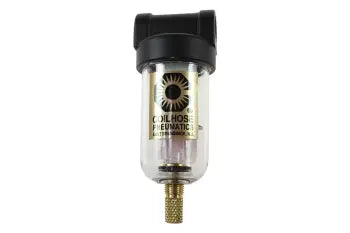

MF1 by Coilhose | 1/8" Miniature Series Filter | 20 Micron Element | 150 PSI | Zinc Die Cast

MF1 by Coilhose | 1/8" Miniature Series Filter | 20 Micron Element | 150 PSI | Zinc Die Cast

Save $23.71 Save $23.71
$59.28
$59.28 - $59.28
$59.28
$35.57
$35.57 - $35.57
$35.57
Coilhose Pneumatics - Miniature Series - Miniature Series Filters
Specifications for Variant SKU: MF1 Coilhose
Material(s): Die Cast Zinc, Polycarbonate, Polypropylene
Special Properties: Mini/Micro Size
Overview:
  • The Miniature Series Filters are designed for applications where space is limited and flow requirements are low. They excel in control panels and miniature circuitry. Each unit can be disassembled by hand for easy maintenance.
Features:
  • Compact size
  • Tough die cast zinc body.
  • 20 micron or 5 micron filter element.
  • Manual drain for quick and easy fluid removal.
  • Metal bowl option
  • 1.5 oz. bowl capacity
Specifications:
  • Maximum Supply Pressure:
    • Plastic Bowl: 150 PSI
    • Metal Bowl: 250 PSI
  • Maximum Operating Temp.:
    • Plastic Bowl: 120° F
    • Metal Bowl: 250° F
  • Filter Element:
    • Standard: 20 Micron
    • Optional: 5 Micron
  • Materials:
    • Plastic Bowl: Polycarbonate
    • Metal Bowl: Zinc Die Cast
    • Body: Zinc Die Cast
    • Filter Element: Porous Polypropylene
  • Height: 4"
  • Maximum Diameter: 1-1/2"
  • Bowl Capacity: 1.5 oz.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Supply Pressure Pressure Drop
1 2 3 4 5
25 PSI 7 SCFM 10 SCFM 12.5 SCFM 15 SCFM 17 SCFM
50 PSI 9 SCFM 13 SCFM 16 SCFM 19 SCFM 21 SCFM
75 PSI 11 SCFM 15.5 SCFM 19.5 SCFM 22 SCFM 24.5 SCFM
100 PSI 13 SCFM 17.5 SCFM 21 SCFM 24.5 SCFM 26 SCFM
Note: All values are approximate.

Model Drain Material Max Pressure Micron Level Port Size
MF1 Manual Polycarbonate 150 PSI 20 Micron 1/8"
MF1-X Manual Polycarbonate 150 PSI 5 Micron 1/8"
MF1-M Manual Metal 250 PSI 20 Micron 1/8"
MF1-MX Manual Metal 250 PSI 5 Micron 1/8"
MF1-CS* Manual Polycarbonate 150 PSI 20 Micron 1/8"

MF2 Manual Polycarbonate 150 PSI 20 Micron 1/4"
MF2-X Manual Polycarbonate 150 PSI 5 Micron 1/4"
MF2-M Manual Metal 250 PSI 20 Micron 1/4"
MF2-MX Manual Metal 250 PSI 5 Micron 1/4"
MF2-CS* Manual Polycarbonate 150 PSI 20 Micron 1/4"
* Clamshell Packaging
