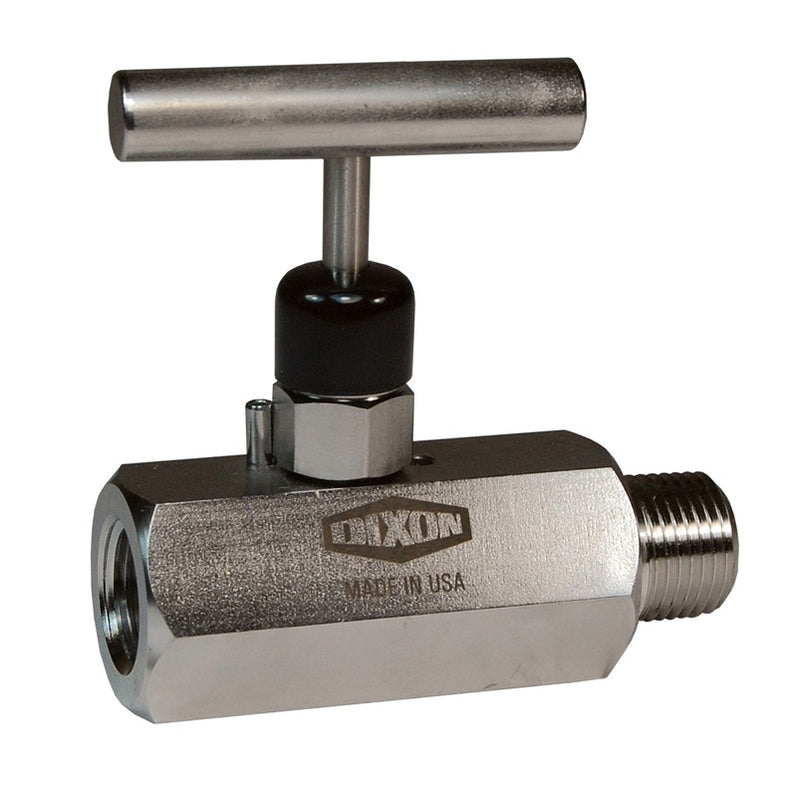

MFS404 by Dixon Valve | Mini Needle Valve | T Design Handle | 1/2" Male NPT x 1/2" Female NPT | 316 Stainless Steel

MFS404 by Dixon Valve | Mini Needle Valve | T Design Handle | 1/2" Male NPT x 1/2" Female NPT | 316 Stainless Steel

Save $13.06 Save $13.06
$139.82
$139.82 - $139.82
$139.82
$126.76
$126.76 - $126.76
$126.76

Dixon Valve & Coupling
Mini Needle Valve
Specifications for Variant SKU: MFS404 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPT, 1/2in Female NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling.
  • Stem threads are rolled for strength and ease of operation.
Materials:
  • Stems: 316 stainless steel
Specifications:
  • Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI.
  • 1/8" and 1/4" are orifice size: 0.172", flow coefficient: 0.42.
  • 1/2": orifice size are 0.187", flow coefficient: 0.44, hex body.
Part Number Material NPT Size Handle Style PSI @ 200°F
Male NPT x Female NPT
MFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
MFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
MFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
MFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
MFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
MFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
MFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
MFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
Female NPT x Female NPT
FFB101 Brass 1/8-27 Knurled Knob Handle 6000 PSI
FFB102 Brass 1/4-18 Knurled Knob Handle 6000 PSI
FFC101 Zinc Nickel Plated Steel 1/8-27 T Design Handle 10000 PSI
FFC102 Zinc Nickel Plated Steel 1/4-18 T Design Handle 10000 PSI
FFC404 Zinc Nickel Plated Steel 1/2-14 T Design Handle 10000 PSI
FFS101 316 Stainless Steel 1/8-27 T Design Handle 10000 PSI
FFS102 316 Stainless Steel 1/4-18 T Design Handle 10000 PSI
FFS404 316 Stainless Steel 1/2-14 T Design Handle 10000 PSI
