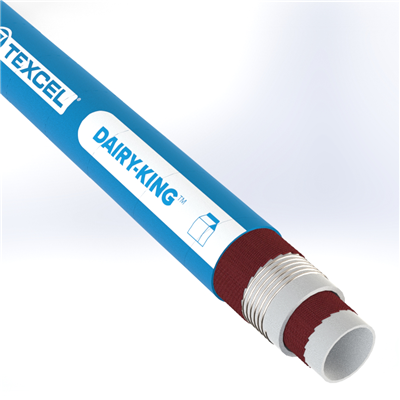

MILK-1.0 by Texcel | DAIRY-KING™ Series | Milk Hose | 1" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue

$13.39 - $1,116.00

$13.39

$11.90

$11.90 - $992.00

$11.90

Texcel
DAIRY-KING™ Series | Milk Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Quantity

Specifications for Variant SKU: MILK-1.0-100 Texcel \| 100 \|
Series:	DAIRY-KING™ Series
Hose Color(s):	Blue
Internal Diameter:	1in
Outer Diameter:	1.38in
Tubing Construction:	Nitrile
Cover Construction:	EPDM

Technical Data:
Description:	DAIRY-KING™ milk hose is specifically designed for the suction and delivery of milk and other fatty foods. The DAIRY-KING™ hose has a white, smooth, NBR rubber tube to ensure product quality, is odorless and does not alter taste. Its blue, smooth, cloth impression EPDM rubber cover offers abrasion-, ozoneand weather-resistance. This hose can be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935 / 2004. Hose conform to 3A standards.	Tube:	White, NBR
Cover:	Blue, EPDM	Reinforcement:	High strength synthetic plies with steel helix
Safety Factor:	3:1	Temperature:	-40°F to +248°F
Branding:	TEXCEL® DAIRY-KING™ MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE	Safety Note:	It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features:	FDA, USDA and 3A compliant

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./Ft.
MILK-.75	3/4"	1-9/64"	150 psi	29	2.5"	0.45 lbs
MILK-1.0	1"	1-24/64"	150 psi	29	3.5"	0.54 lbs
MILK-1.25	1-1/4"	1-47/64"	150 psi	29	4.25"	0.83 lbs
MILK-1.5	1-1/2"	1-62/64"	150 psi	29	5"	0.93 lbs
MILK-2.0	2"	2-32/64"	150 psi	29	7.5"	1.26 lbs
MILK-3.0	3"	3-32/64"	150 psi	29	11"	2.02 lbs
MILK-4.0	4"	4-35/64"	150 psi	29	13"	3.09 lbs
