MIX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Male SAE 45° Inverted Flare | Carbon Steel

MIX-06-06-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 3/8" Male SAE 45° Inverted Flare | Carbon Steel

Save $19.49 Save $19.49
$48.73
$48.73 - $48.73
$48.73
$29.24
$29.24 - $29.24
$29.24

Kurt Hydraulics
MIX - 45° SAE Male Inverted Flare
Specifications for Variant SKU: MIX-06-06-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb x 3/8in Male Inverted Flare
Material(s): Carbon Steel

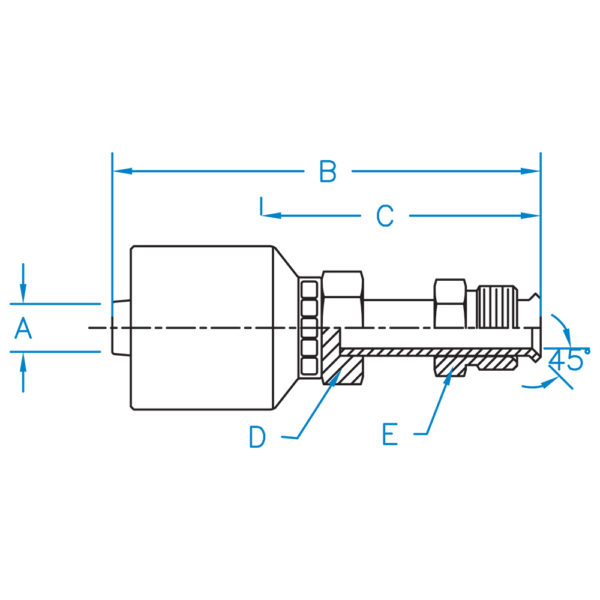

Part Number Hose I.D. (in.) B C D E Thread
MIX-04-04-K2 1/4" 2.93" 1.85" 5/8" 7/16" 7/16 – 24
MIX-04-05-K2 1/4" 2.94" 1.88" 5/8" 1/2" 1/2 – 20
MIX-04-06-K2 1/4" 3.29" 2.23" 5/8" 5/8" 5/8 – 18
MIX-06-04-K2 3/8" 3.26" 1.89" 11/16" 7/16" 7/16 – 24
MIX-06-05-K2 3/8" 3.37" 2.00" 3/4" 1/2" 1/2 – 20
MIX-06-06-K2 3/8" 3.65" 2.28" 3/4" 5/8" 5/8 – 18
MIX-06-07-K2 3/8" 2.97" 1.60" 11/16" 11/16" 11/16 – 18
MIX-06-08-K2 3/8" 3.35" 1.98" 3/4" 3/4" 3/4 – 18
MIX-08-08-K2 1/2" 3.55" 2.21" 7/8" 3/4" 3/4 – 18
MIX-08-10-K2 1/2" 3.19" 1.85" 3/4" 7/8" 7/8 – 18
