MIX-06-06 by Kurt Hydraulics | 45° Elbow | Male SAE Inverted Flare | for 3/8" Hose ID

MIX-06-06 by Kurt Hydraulics | 45° Elbow | Male SAE Inverted Flare | for 3/8" Hose ID

Save $7.36 Save $7.36
$18.40
$18.40 - $18.40
$18.40
$11.04
$11.04 - $11.04
$11.04

by Kurt Hydraulics
MIX - 45 deg. SAE Male Inverted Flare

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MIX-06-06 Kurt
Series: Braided Coupling Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Male Inverted Flare

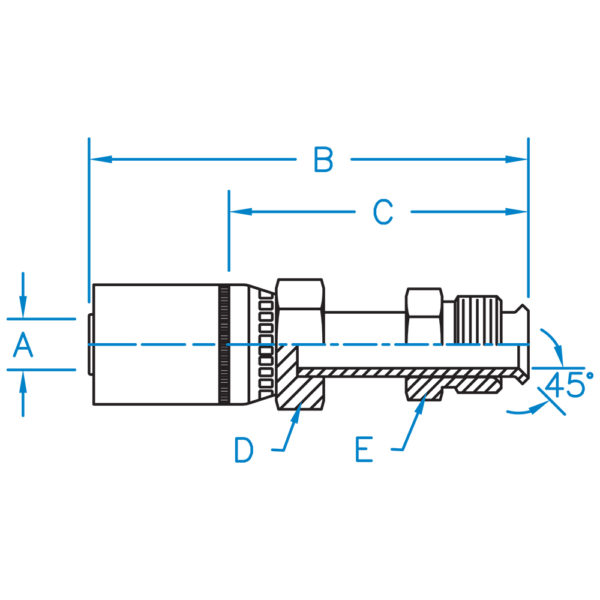

Part Number A B C D E Hose ID
(In)		 Thread
MIX-04-03 0.250 3.005 1.750 9/16 3/8 1/4" 3/8-24
MIX-04-04 0.250 3.195 1.959 5/8 7/16 1/4" 7/16-24
MIX-04-05 0.250 3.255 2.000 5/8 1/2 1/4" 1/2-20
MIX-04-06 0.250 2.900 1.650 5/8 5/8 1/4" 5/8-18
MIX-05-05 0.312 3.410 2.060 5/8 1/2 5/16" 1/2-20
MIX-05-06 0.312 3.750 2.285 5/8 5/8 5/16" 5/8-18
MIX-06-04 0.375 3.475 1.975 11/16 R 7/16 3/8" 7/16-24
MIX-06-05 0.375 3.170 1.810 3/4 1/2 3/8" 1/2-20
MIX-06-06 0.375 3.156 2.323 3/4 5/8 3/8" 5/8-18
MIX-06-07 0.375 3.162 1.665 3/4 11/16 3/8" 11/16-18
MIX-06-08 0.375 3.415 1.915 3/4 3/4 3/8" 3/4-18
MIX-08-08 0.500 3.592 2.009 7/8 3/4 1/2" 3/4-18
MIX-08-10 0.500 3.456 1.956 7/8 3/4 1/2" 7/8-18

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
