MIX45-06-05 by Kurt Hydraulics | Jump Size | 45° Elbow | Male SAE Inverted Flare | Swivel | for 3/8" Hose ID

Save $6.65

$16.62

$16.62 - $16.62

$16.62

$9.97

$9.97 - $9.97

$9.97

by Kurt Hydraulics
MIX45 - 45 deg. SAE Male Inverted Flare 45 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MIX45-06-05 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/8in Hose Barb, 5/16in Male Inverted Flare
Special Properties:	Swivel, Jump Size

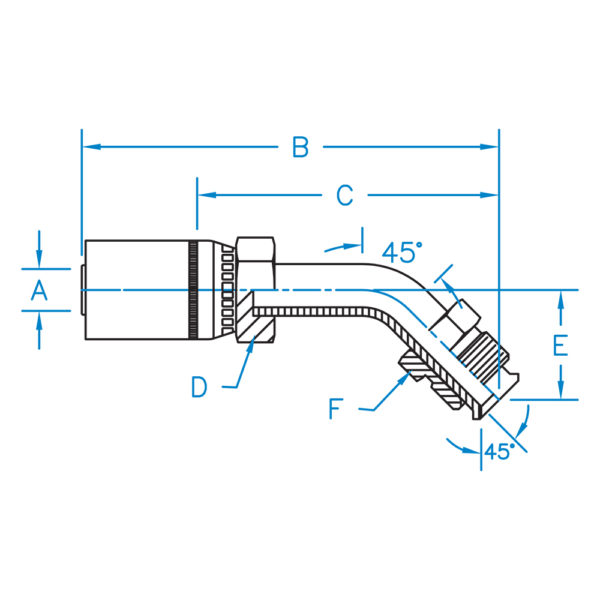

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
MIX45-04-03	0.250	2.945	1.690	9/16	0.720	3/8	1/4"	3/8-24
MIX45-04-04	0.250	2.728	1.463	5/8	0.600	7/16	1/4"	7/16-24
MIX45-04-05	0.250	2.862	1.593	5/8	0.685	1/2	1/4"	1/2-20
MIX45-04-06	0.250	2.900	1.650	5/8	0.780	5/8	1/4"	5/8-18
MIX45-05-05	0.312	3.410	2.060	5/8	0.880	1/2	5/16"	1/2-20
MIX45-05-06	0.312	3.750	2.410	5/8	0.940	5/8	5/16"	5/8-18
MIX45-06-05	0.375	3.170	1.810	3/4	0.880	1/2	3/8"	1/2-20
MIX45-06-06	0.375	3.156	1.650	3/4	0.780	5/8	3/8"	5/8-18
MIX45-06-07	0.375	3.162	1.665	3/4	0.760	11/16	3/8"	11/16-18
MIX45-06-08	0.375	3.415	1.915	3/4	0.960	3/4	3/8"	3/4-18
MIX45-08-08	0.500	3.592	1.886	7/8	0.960	3/4	1/2"	3/4-18
MIX45-08-10	0.500	3.893	2.205	7/8	0.840	7/8	1/2"	7/8-18

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
