MIX45-06-06 by Kurt Hydraulics | 45° Elbow | Male SAE Inverted Flare | Swivel | for 3/8" Hose ID

MIX45-06-06 by Kurt Hydraulics | 45° Elbow | Male SAE Inverted Flare | Swivel | for 3/8" Hose ID

Save $1.42 Save $1.42
$12.79
$12.79 - $12.79
$12.79
$11.37
$11.37 - $11.37
$11.37

by Kurt Hydraulics
MIX45 - 45 deg. SAE Male Inverted Flare 45 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MIX45-06-06 Kurt
Series: MIX45 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Male Inverted Flare
Special Properties: Swivel

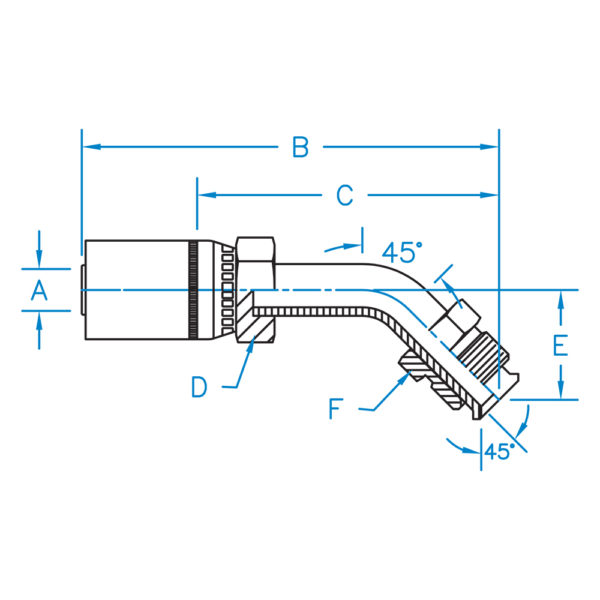

Part Number A B C D E F Hose ID
(In)		 Thread
MIX45-04-03 0.250 2.945 1.690 9/16 0.720 3/8 1/4" 3/8-24
MIX45-04-04 0.250 2.728 1.463 5/8 0.600 7/16 1/4" 7/16-24
MIX45-04-05 0.250 2.862 1.593 5/8 0.685 1/2 1/4" 1/2-20
MIX45-04-06 0.250 2.900 1.650 5/8 0.780 5/8 1/4" 5/8-18
MIX45-05-05 0.312 3.410 2.060 5/8 0.880 1/2 5/16" 1/2-20
MIX45-05-06 0.312 3.750 2.410 5/8 0.940 5/8 5/16" 5/8-18
MIX45-06-05 0.375 3.170 1.810 3/4 0.880 1/2 3/8" 1/2-20
MIX45-06-06 0.375 3.156 1.650 3/4 0.780 5/8 3/8" 5/8-18
MIX45-06-07 0.375 3.162 1.665 3/4 0.760 11/16 3/8" 11/16-18
MIX45-06-08 0.375 3.415 1.915 3/4 0.960 3/4 3/8" 3/4-18
MIX45-08-08 0.500 3.592 1.886 7/8 0.960 3/4 1/2" 3/4-18
MIX45-08-10 0.500 3.893 2.205 7/8 0.840 7/8 1/2" 7/8-18
