MIX45-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Male SAE 45° Inverted Flare | 45° Elbow | Carbon Steel

MIX45-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Male SAE 45° Inverted Flare | 45° Elbow | Carbon Steel

Save $23.07 Save $23.07
$57.68
$57.68 - $57.68
$57.68
$34.61
$34.61 - $34.61
$34.61

Kurt Hydraulics
MIX45 - 45° SAE Male Inverted Flare 45° Bent Tube Swivel
Specifications for Variant SKU: MIX45-06-08-K2 Kurt
Series: K2 Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb x 1/2in Male Inverted Flare
Material(s): Carbon Steel

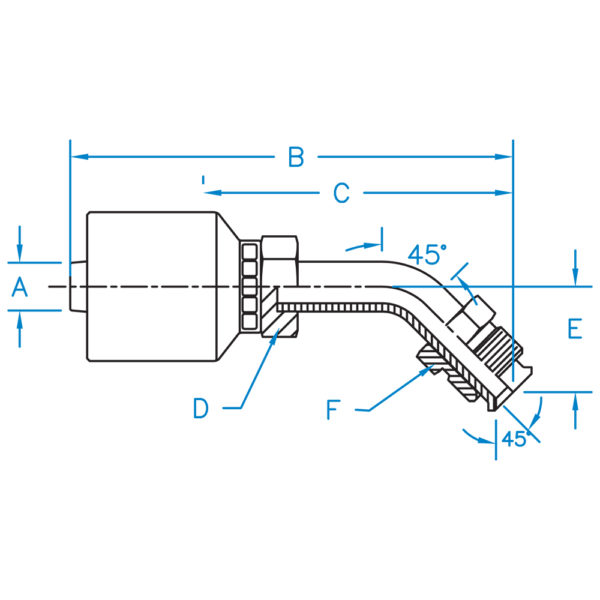

Part Number Hose I.D. (in.) B C D E F Thread
MIX45-04-04-K2 1/4" 2.68" 1.62" 5/8" 0.78" 7/16" 7/16 – 24
MIX45-04-05-K2 1/4" 2.82" 1.76" 5/8" 0.88" 1/2" 1/2 – 20
MIX45-04-06-K2 1/4" 3.44" 2.36" 5/8" 0.94" 5/8" 5/8 – 18
MIX45-06-05-K2 3/8" 3.15" 1.78" 11/16" 0.88" 1/2" 1/2 – 20
MIX45-06-06-K2 3/8" 3.77" 2.40" 3/4" 0.94" 5/8" 5/8 – 18
MIX45-06-07-K2 3/8" 3.98" 2.61" 11/16" 0.94" 11/16" 11/16 – 18
MIX45-06-08-K2 3/8" 4.31" 2.81" 3/4" 1.06" 7/8" 3/4 – 18
MIX45-08-08-K2 1/2" 4.12" 2.78" 7/8" 1.06" 3/4" 3/4 – 18
MIX45-08-10-K2 1/2" 3.54" 2.20" 7/8" 0.84" 7/8" 7/8 – 18
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
