MIX90-06-07 by Kurt Hydraulics | Jump Size | 45° Elbow | Male SAE Inverted Flare | 90° Elbow | Swivel | for 3/8" Hose ID

Save $9.66

$24.15

$24.15 - $24.15

$24.15

$14.49

$14.49 - $14.49

$14.49

by Kurt Hydraulics
MIX90 - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MIX90-06-07 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 7/16in Male Inverted Flare
Special Properties:	Swivel, Jump Size

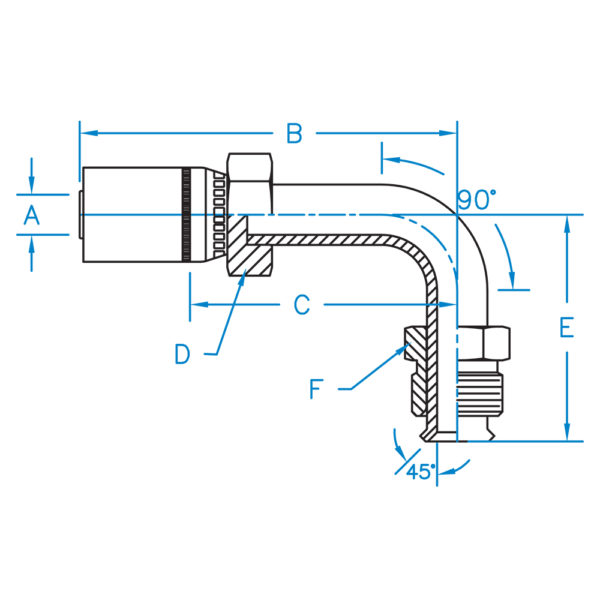

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
MIX90-03-04	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
MIX90-04-03	0.250	3.005	1.750	9/16	1.380	3/8	1/4"	6/8-24
MIX90-04-04	0.250	3.280	1.940	5/8	1.470	7/16	1/4"	7/16-24
MIX90-04-05	0.250	3.520	2.160	5/8	1.660	1/2	1/4"	1/2-20
MIX90-04-06	0.250	3.500	2.160	5/8	1.690	5/8	1/4"	5/8-18
MIX90-05-05	0.312	4.000	2.300	5/8	1.660	1/2	5/16"	1/2-20
MIX90-05-06	0.312	4.050	2.670	5/8	1.690	5/8	5/16"	5/8-18
MIX90-06-04	0.375	2.630	1.130	11/16 R	1.470	7/16	3/8"	7/16-24
MIX90-06-05	0.375	3.175	1.675	3/4	1.320	1/2	3/8"	1/2-20
MIX90-06-06	0.375	2.730	2.690	3/4	1.690	5/8	3/8"	5/8-18
MIX90-06-07	0.375	4.19	2.69	3/4	1.69	11/16	3/8"	11/16-18
MIX90-06-08	0.375	3.68	2.18	3/4	1.88	3/4	3/8"	3/4-18
MIX90-08-08	0.500	3.100	1.405	7/8	0.780	3/4	1/2"	3/4-18
MIX90-08-10	0.500	3.125	1.437	7/8	1.625	7/8	1/2"	7/8-18

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
