MIX90-08-10 by Kurt Hydraulics | Jump Size | 45° Elbow | Male SAE Inverted Flare | 90° Elbow | Swivel | for 1/2" Hose ID

MIX90-08-10 by Kurt Hydraulics | Jump Size | 45° Elbow | Male SAE Inverted Flare | 90° Elbow | Swivel | for 1/2" Hose ID

Save $13.73 Save $13.73
$34.32
$34.32 - $34.32
$34.32
$20.59
$20.59 - $20.59
$20.59

by Kurt Hydraulics
MIX90 - 45 deg. SAE Male Inverted Flare 90 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MIX90-08-10 Kurt
Series: Braided Coupling Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Hose Barb, 5/8in Male Inverted Flare
Special Properties: Swivel, Jump Size

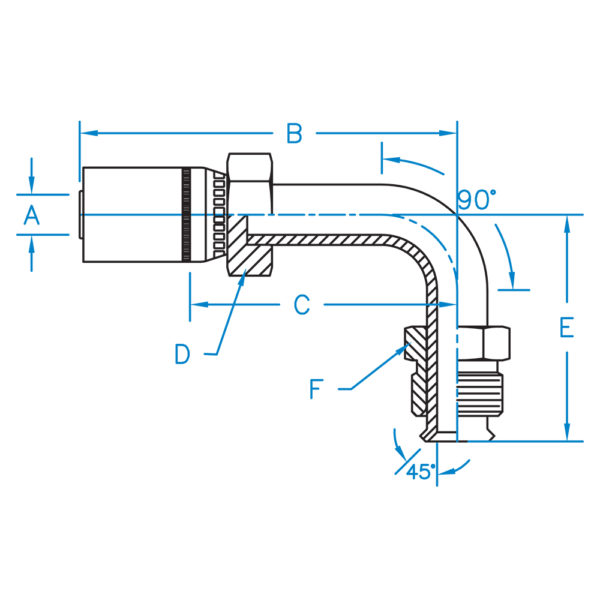

Part Number A B C D E F Hose ID
(In)		 Thread
MIX90-03-04 N/A N/A N/A N/A N/A N/A N/A N/A
MIX90-04-03 0.250 3.005 1.750 9/16 1.380 3/8 1/4" 6/8-24
MIX90-04-04 0.250 3.280 1.940 5/8 1.470 7/16 1/4" 7/16-24
MIX90-04-05 0.250 3.520 2.160 5/8 1.660 1/2 1/4" 1/2-20
MIX90-04-06 0.250 3.500 2.160 5/8 1.690 5/8 1/4" 5/8-18
MIX90-05-05 0.312 4.000 2.300 5/8 1.660 1/2 5/16" 1/2-20
MIX90-05-06 0.312 4.050 2.670 5/8 1.690 5/8 5/16" 5/8-18
MIX90-06-04 0.375 2.630 1.130 11/16 R 1.470 7/16 3/8" 7/16-24
MIX90-06-05 0.375 3.175 1.675 3/4 1.320 1/2 3/8" 1/2-20
MIX90-06-06 0.375 2.730 2.690 3/4 1.690 5/8 3/8" 5/8-18
MIX90-06-07 0.375 4.19 2.69 3/4 1.69 11/16 3/8" 11/16-18
MIX90-06-08 0.375 3.68 2.18 3/4 1.88 3/4 3/8" 3/4-18
MIX90-08-08 0.500 3.100 1.405 7/8 0.780 3/4 1/2" 3/4-18
MIX90-08-10 0.500 3.125 1.437 7/8 1.625 7/8 1/2" 7/8-18

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
