MJ-12-12 by Kurt Hydraulics | Male 37 Degree JIC | Rigid | for 3/4" Hose ID

MJ-12-12 by Kurt Hydraulics | Male 37 Degree JIC | Rigid | for 3/4" Hose ID

Save $4.58 Save $4.58
$11.45
$11.45 - $11.45
$11.45
$6.87
$6.87 - $6.87
$6.87
by Kurt Hydraulics
MJ - 37 deg. JIC Male Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MJ-12-12 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male JIC
Special Properties: Rigid

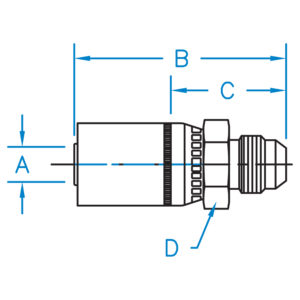

Part Number A B C D Hose ID
(In)		 Thread
MJ-04-04 0.250 2.300 1.045 9/16 1/4" 7/16-20
MJ-04-05 0.250 2.305 1.050 9/16 1/4" 1/2-20
MJ-04-06 0.250 2.311 1.056 9/16 1/4" 9/16-18
MJ-06-04 0.375 2.655 1.155 11/16 3/8" 7/16-20
MJ-06-05 0.375 2.600 1.10 3/4 3/8" 1/2-20
MJ-06-06 0.375 2.661 1.166 11/16 3/8" 9/16-18
MJ-06-08 0.375 2.762 1.267 3/4 3/8" 3/4-16
MJ-06-10 0.375 2.935 1.435 7/8 3/8" 7/8-14
MJ-08-06 0.500 2.744 1.244 7/8 1/2" 9/16-16
MJ-08-08 0.500 2.845 1.345 7/8 1/2" 3/4-16
MJ-08-10 0.500 3.003 1.508 7/8 1/2" 7/8-14
MJ-08-12 0.500 3.109 1.609 1-1/8 1/2" 1-1/16-12
MJ-10-10 0.625 3.019 1.519 1-1/8 5/8" 7/8-14
MJ-10-12 0.625 3.125 1.625 1-1/8 5/8" 1-1/16-12
MJ-12-10 0.750 3.061 1.470 1-1/8 3/4" 7/8-14
MJ-12-12 0.750 3.218 1.625 1-1/8 3/4" 1-1/16-12
MJ-12-14 0.750 3.244 1.651 1-1/4 3/4" 1-3/16-12
MJ-12-16 0.750 3.265 1.672 1-3/8 3/4" 1-5/16-12
MJ-16-16 1.000 3.422 1.688 1-3/8 1.000" 1-5/16-12
MJ-20-20 1.250 3.848 1.848 1-3/4 1-1/4" 1-5/8-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
