MJ-16-16-W by Kurt Hydraulics | Male 37 Degree JIC | Rigid | for 1" Hose ID

MJ-16-16-W by Kurt Hydraulics | Male 37 Degree JIC | Rigid | for 1" Hose ID

Save $9.79 Save $9.79
$24.48
$24.48 - $24.48
$24.48
$14.69
$14.69 - $14.69
$14.69
by Kurt Hydraulics
MJ-W - 37 deg. JIC Male Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MJ-16-16-W Kurt
Series: W Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Male JIC
Special Properties: Rigid

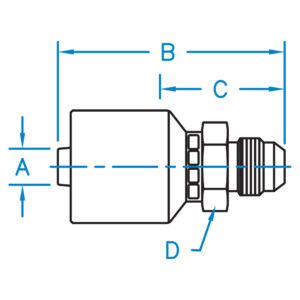

Part Number A B C D Hose ID
(In)		 Thread
MJ-06-05-W 0.375 2.355 0.985 11/16 3/8" 1/2-20
MJ-06-06-W 0.375 2.120 0.990 3/4 3/8" 9/16-18
MJ-06-08-W 0.375 2.380 1.150 3/4 3/8" 3/4-16
MJ-06-10-W 0.375 2.724 1.354 1.000 3/8" 7/8-14
MJ-08-06-W 0.500 2.386 1.046 11/16 1/2" 9/16-18
MJ-08-08-W 0.500 2.570 1.230 7/8 1/2" 3/4-16
MJ-08-10-W 0.500 2.720 1.380 1.000 1/2" 7/8-14
MJ-08-12-W 0.500 2.854 1.514 1-1/8 1/2" 1-1/16-12
MJ-10-10-W 0.625 3.579 1.479 7/8 5/8" 7/8-14
MJ-10-12-W N/A N/A N/A N/A N/A N/A
MJ-12-12-W 0.750 3.340 1.550 1-1/8 3/4" 1-1/16-12
MJ-12-14-W 0.750 3.409 1.530 1-1/4 3/4" 1-3/16-12
MJ-12-16-W 0.750 3.370 1.580 1-3/8 3/4" 1-5/16-12
MJ-16-16-W 1.000 3.930 1.810 1-3/8 1.000" 1-5/16-12
MJ-16-20-W 1.000 3.810 1.690 1-11/16 1.000" 1-5/8-12
MJ-20-20-W 1.250 4.400 1.650 1-11/16 1-1/4" 1-5/8-12
MJ-20-24-W 1.250 4.380 1.930 2.000 1-1/4" 1-7/8-12
MJ-24-24-W 1.500 4.600 2.000 2-1/4 1-1/2" 1-7/8-12
MJ-32-32-W 2.000 5.900 2.650 2-5/8 2.000" 2-1/2-12


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
