MJ-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Male JIC | for 1" Hose ID

Name: MJ-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Male JIC | for 1" Hose ID
Brand: Kurt Hydraulics
SKU: MJ-16-16-WHP Kurt
Price: 44.56 USD
Availability: InStock

Save $29.71

$74.27

$74.27 - $74.27

$74.27

$44.56

$44.56 - $44.56

$44.56

by Kurt Hydraulics
MJ-WHP - 37 deg. JIC Male Rigid - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: MJ-16-16-WHP Kurt
Series:	WHP Series
Shape (Orientation):	Straight
Ends Configuration:	1in Hose Barb, 1in Male JIC

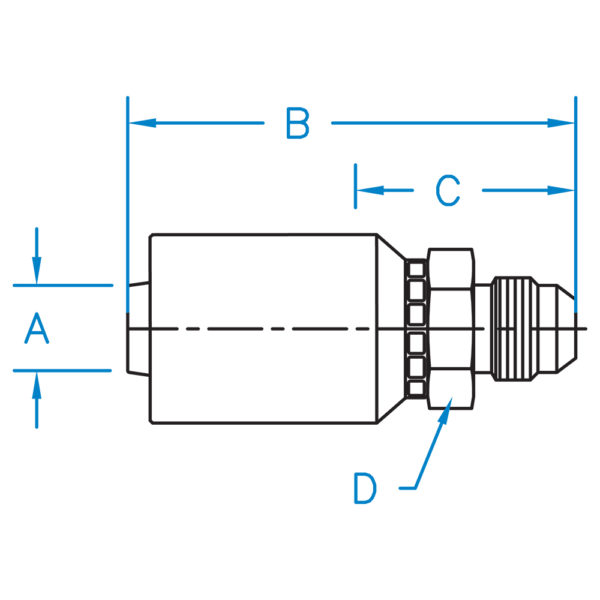

Part Number	A	B	C	D	Hose ID (In)	Thread
MJ-12-12-WHP	0.750	4.004	1.574	1-1/8	3/4"	1-1/16-12
MJ-16-16-WHP	1.000	4.434	1.904	1-3/8	1.000"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
